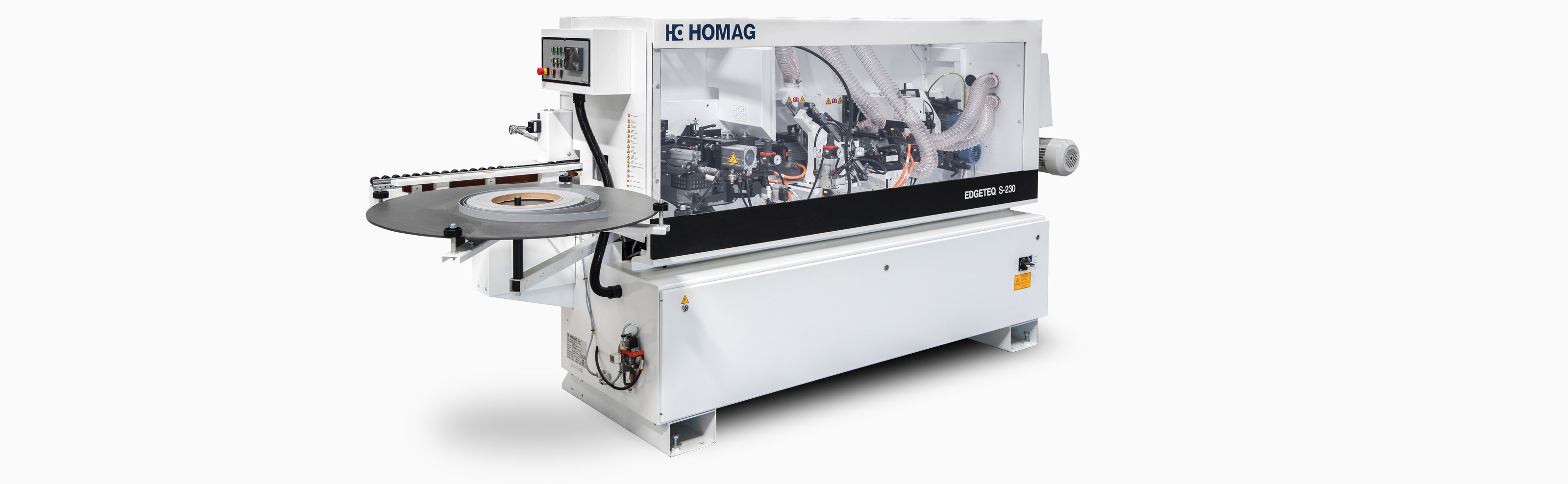

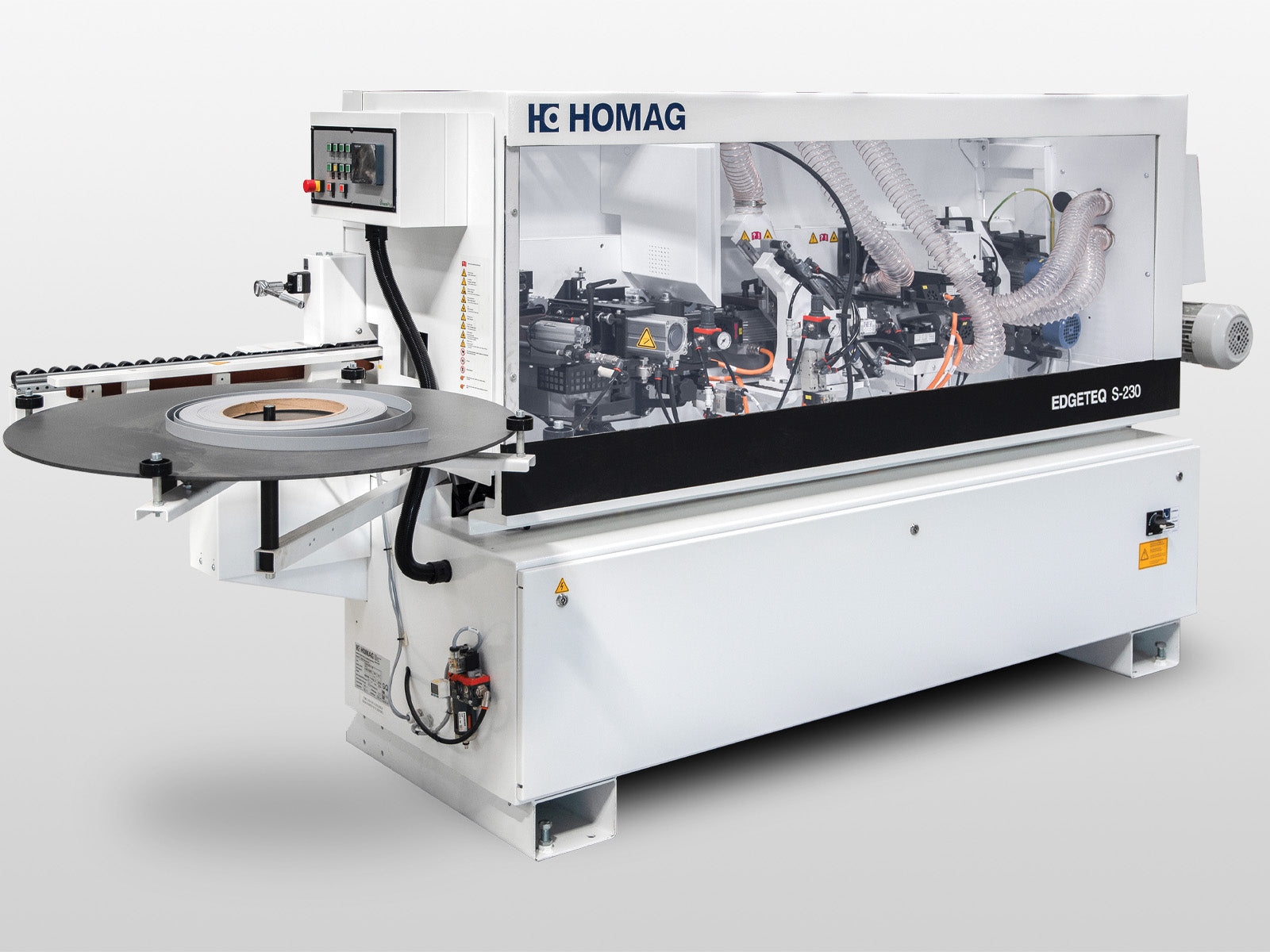

EDGETEQ S-230/210

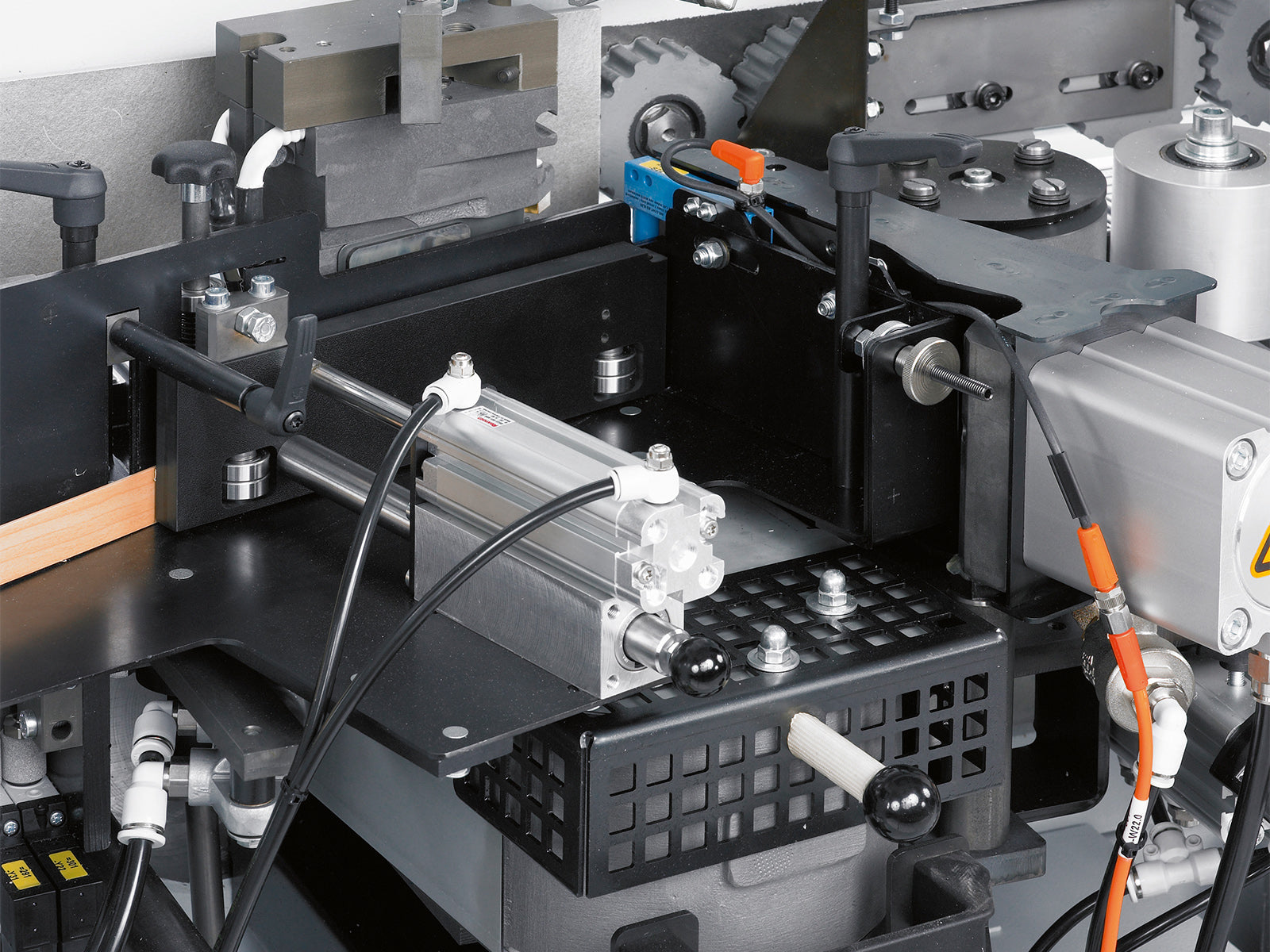

All machines of the EDGETEQ S-230 Series are equipped with a contact heating shoe that optionally activated transfers contact heat into the board edge directly prior to the glue application to the workpiece edge, this notably optimizing the gluing quality, especially with difficult edging materials or at very low ambient temperatures.

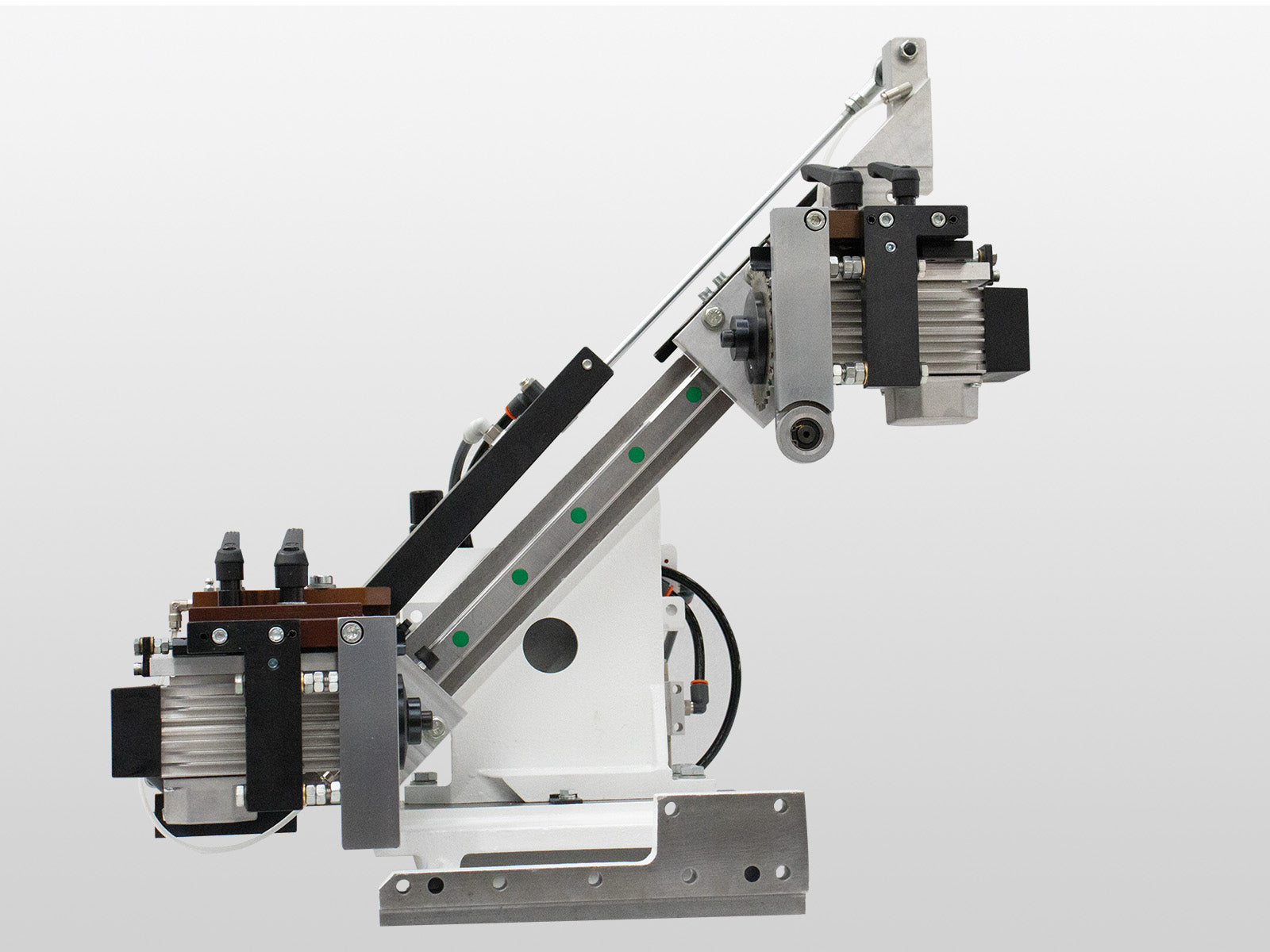

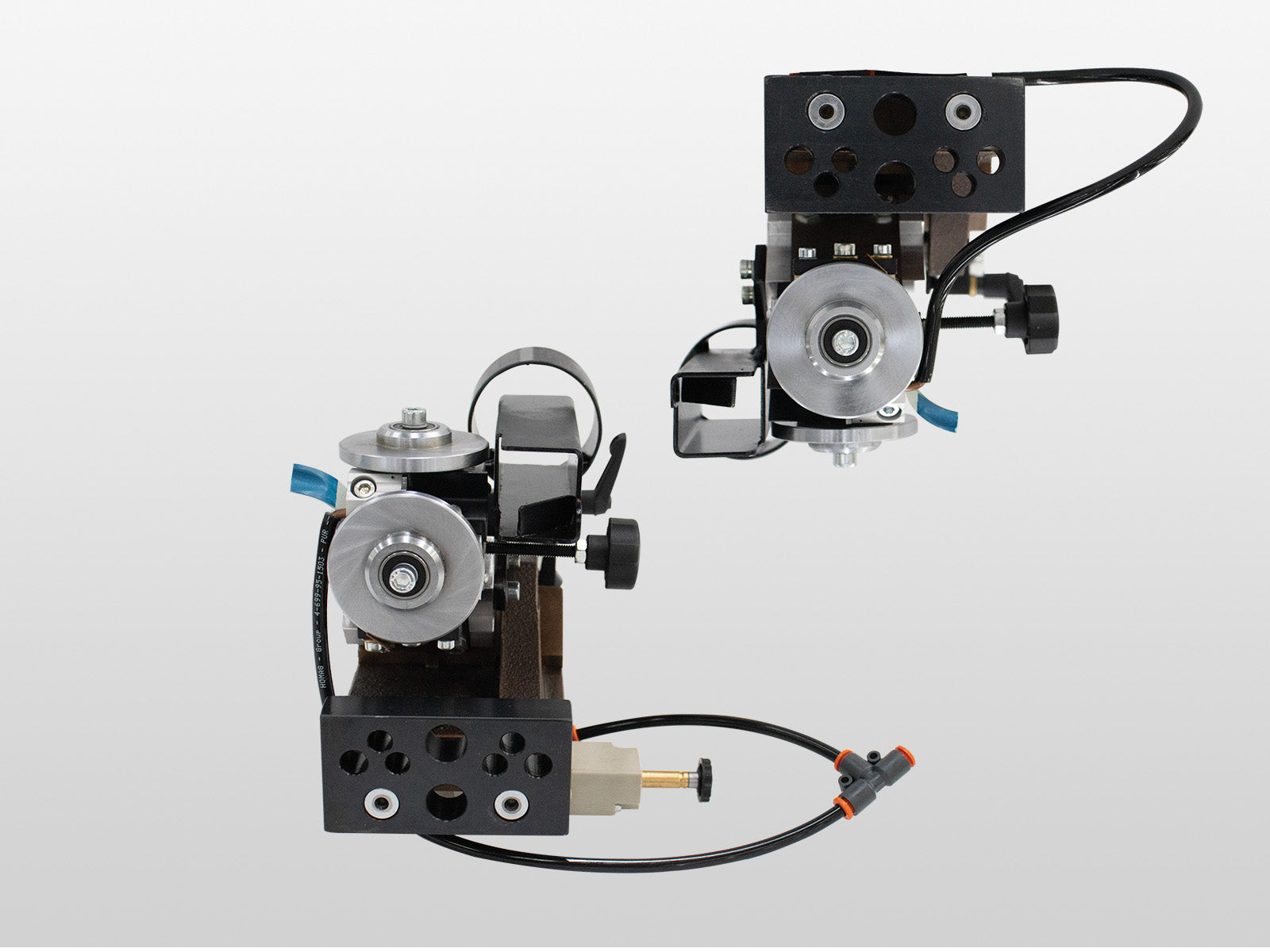

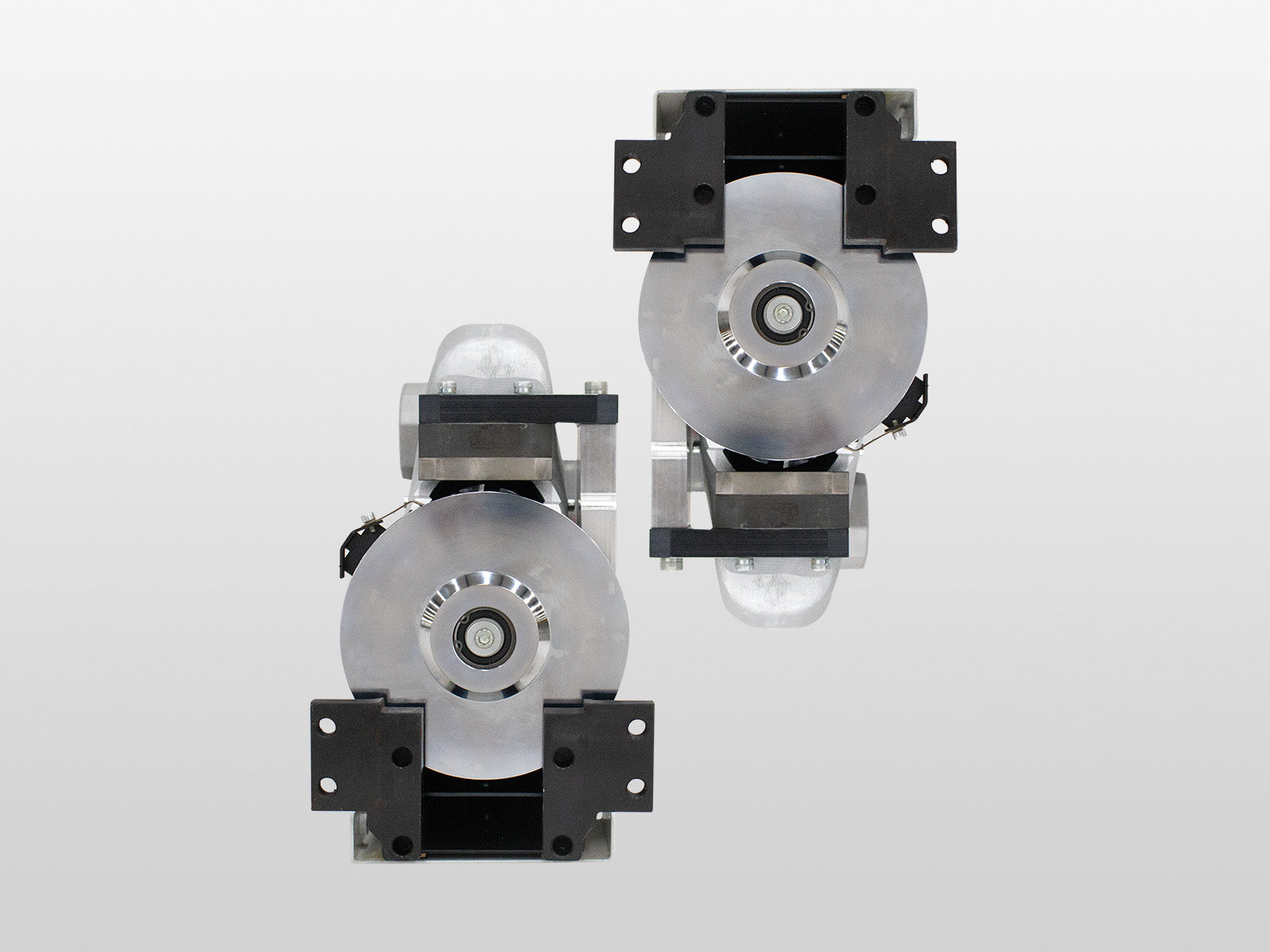

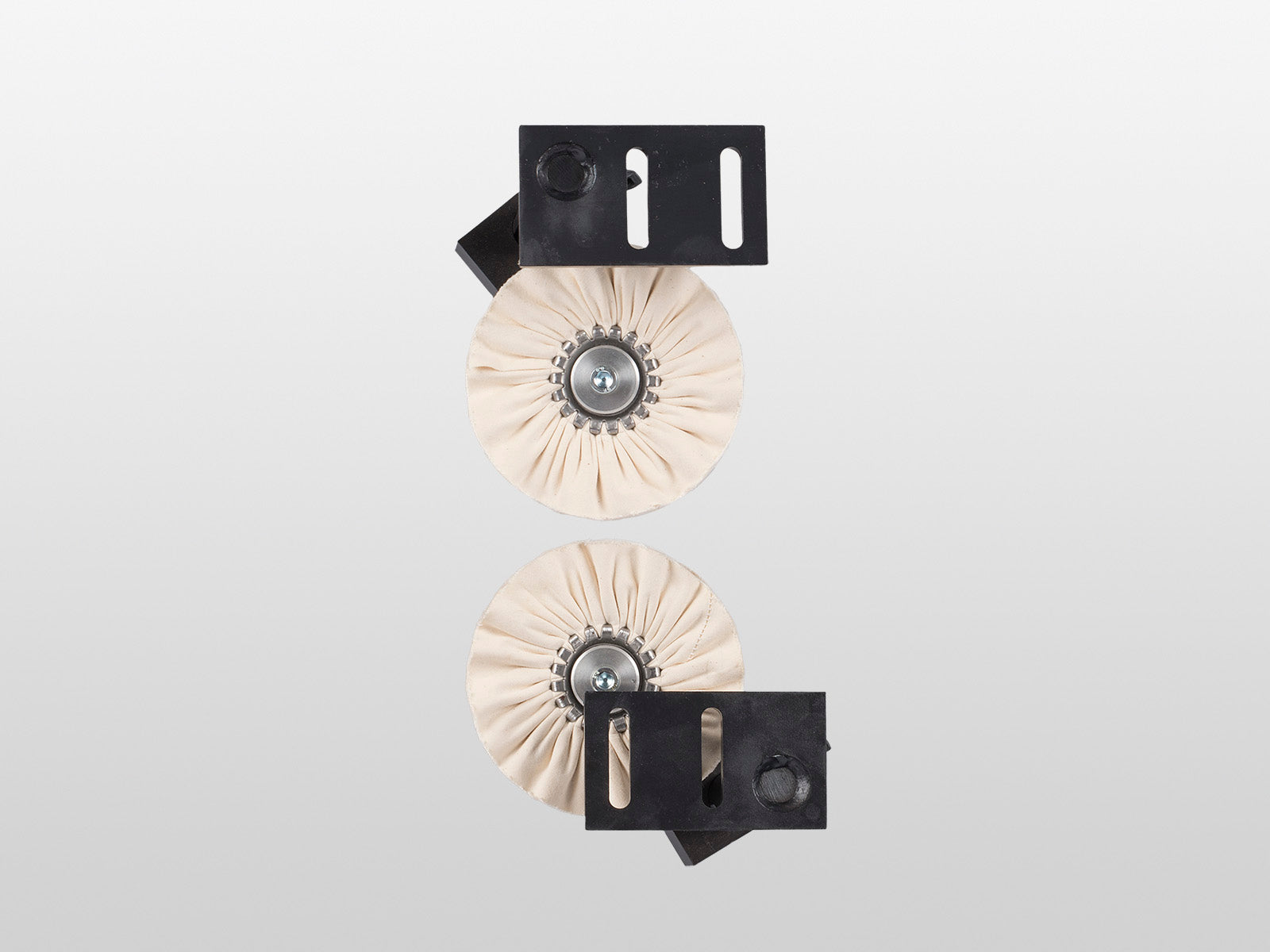

The Model 210 is equipped with Gluing unit, Snipping unit, Trimming unit, Profile Scraper and Buffing unit. The operator set up the working units manually and precisely during the changeover of different thickness of edge materials and panel thickness.

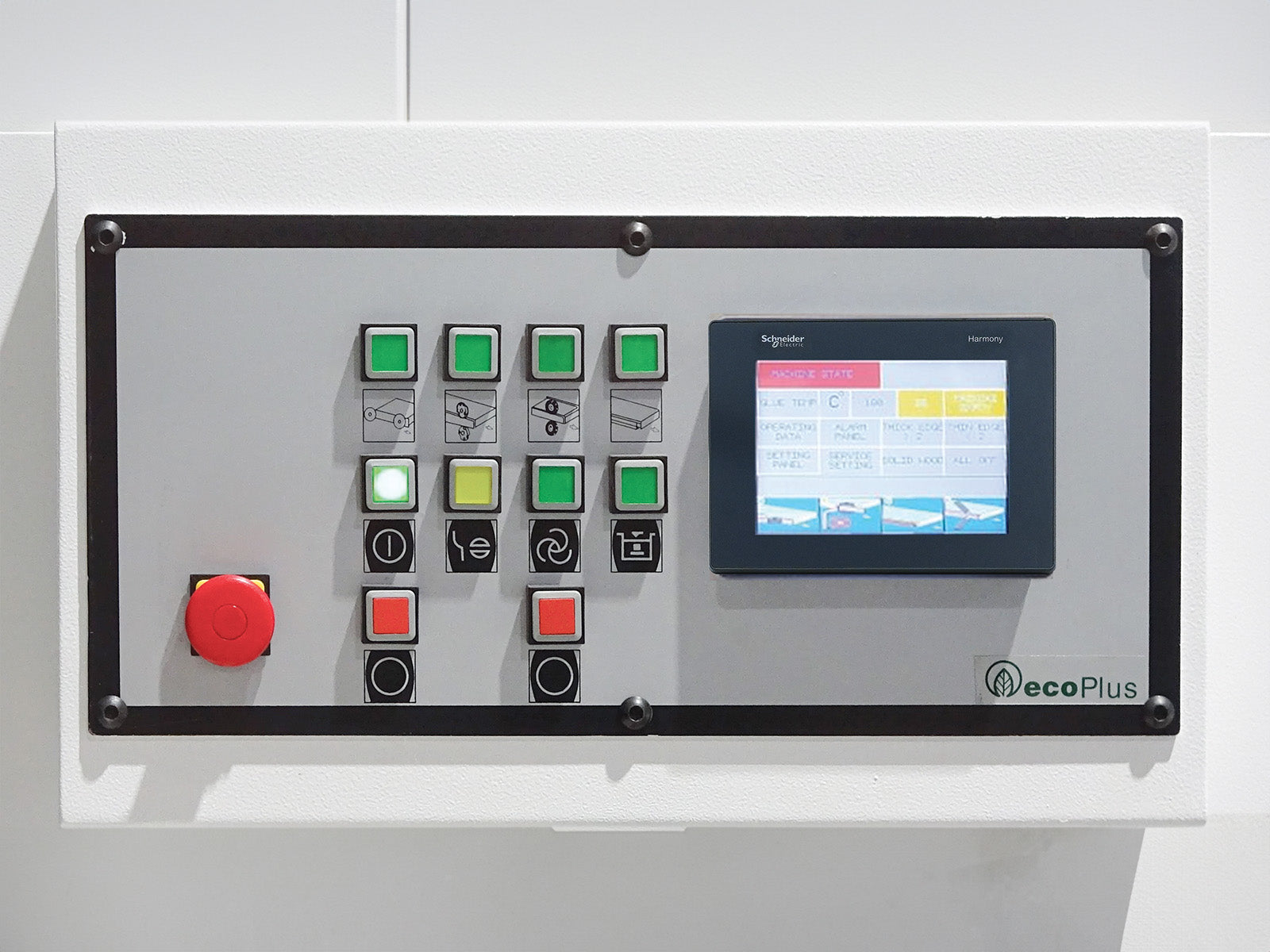

This machine is equipped with a control system with a touch display in widescreen format for simple and comfortable operation and programming of the machine.

The feed speed of EDGETEQ S-230 Model 210 are 11 m/min.

• Perfect cut and high operating life due to diamond tipped tools for an optimum edge joint quality.
• Counter pressure device magazine for sensitive edges.
• Coil and automatic strip magazine for a reliable edge material supply. Optimal glue joints, by controlling the exact amount of glue.

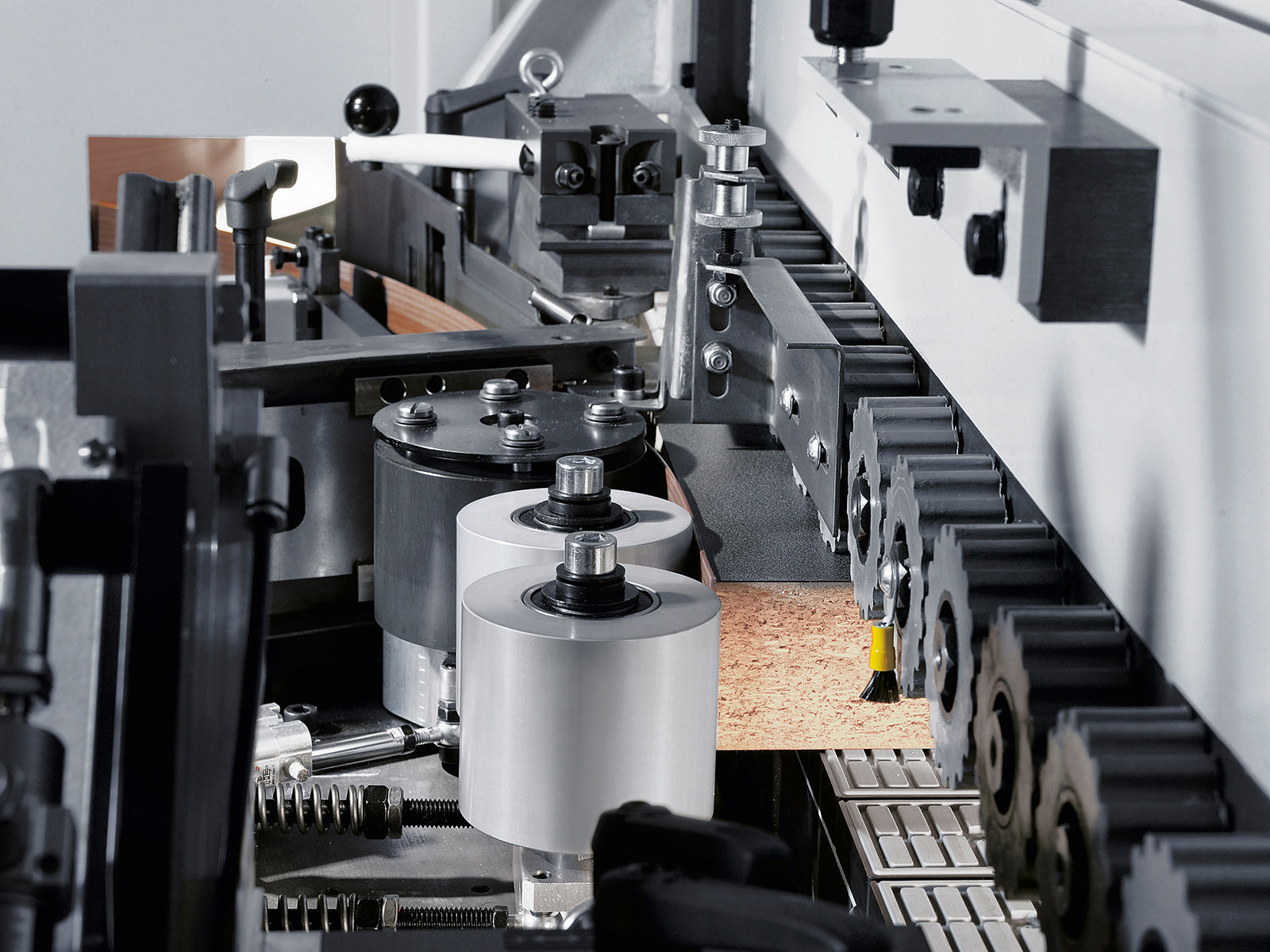

• Heavy pressure zone up to 3 mm edge thickness and 50 mm work piece height for an optimal glue joint.
• Precise end-cut through a strong end­ trimming unit, equipped with THK guides. Chamfer / straight adjustment by easily tilting the unit.
• Touch HMI controls for ease of operation

Model 210 Key Features
