Sorting Production Set

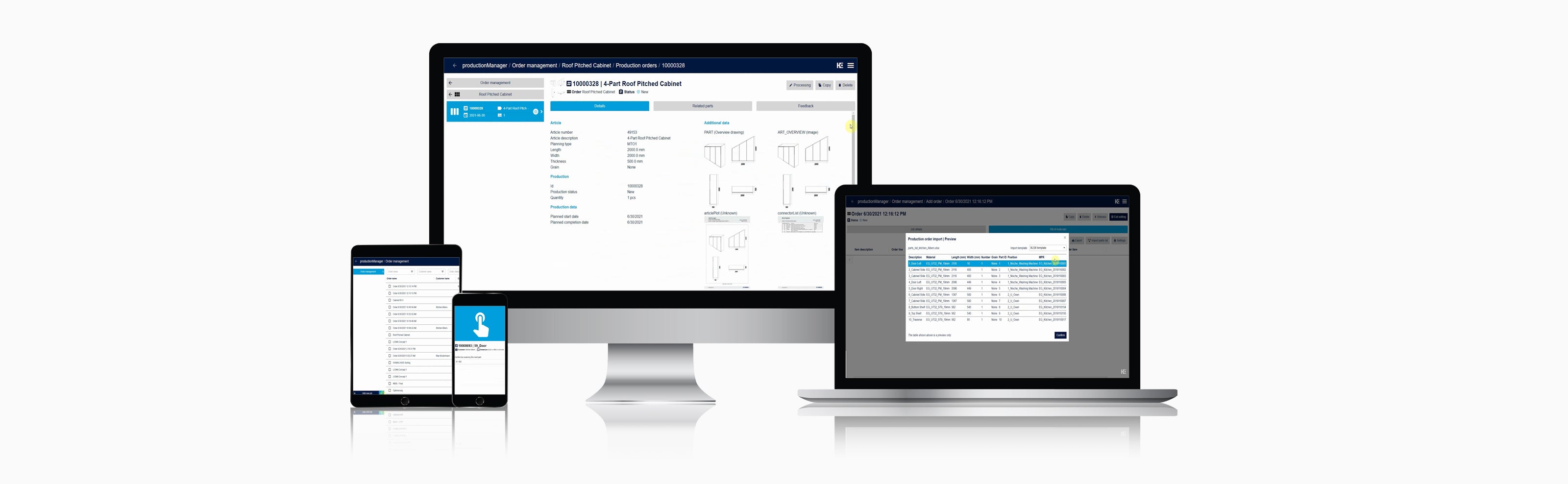

Our sorting assistant supports you with the sorting of components in the workshop. In this way, you always have an overview of the furniture parts for which processing has already been finished and which are complete for assembly, packaging or further processing. The productionManager (part of the sorting assistant) provides you with all the information about your job at all times. You can view the status of your parts in the job progress – and in real time! This allows you to create consistent and transparent workflows for your entire business.

• Transparent: Overview of the completeness of the furniture/components to be sorted. You can can sort your parts cabinet by cabinet and prepare them for the assembly station.
• Efficient: Better organization of the workshop – no more cumbersome and time-consuming searching for parts.
• Saves time and secures workflows: No waiting times due to missing parts – all parts for assembly are complete. The "productionManager", the digital job folder, also provides all information (including drawings).
• Complete overview: Optimized and easy organization of production. You always have an overview of the status of the parts for your job.
• Intelligent: The app notes the position of the job item in the intelligent rack and suggests this for the next part belonging to the job.

• What does the "Sorting Production Set" consist of?
• Two apps: "productionAssist Sorting" (production assistant for sorting) & "productionManager" (digital job folder)
• Construction set for the "productionRack Sorting" sorting rack, available free to download
• Two LED strips for the sorting rack
• HOMAG CUBE (intelligent control box for connecting the rack to the Internet and the apps)
• Installation Guide #BuildYourSolution

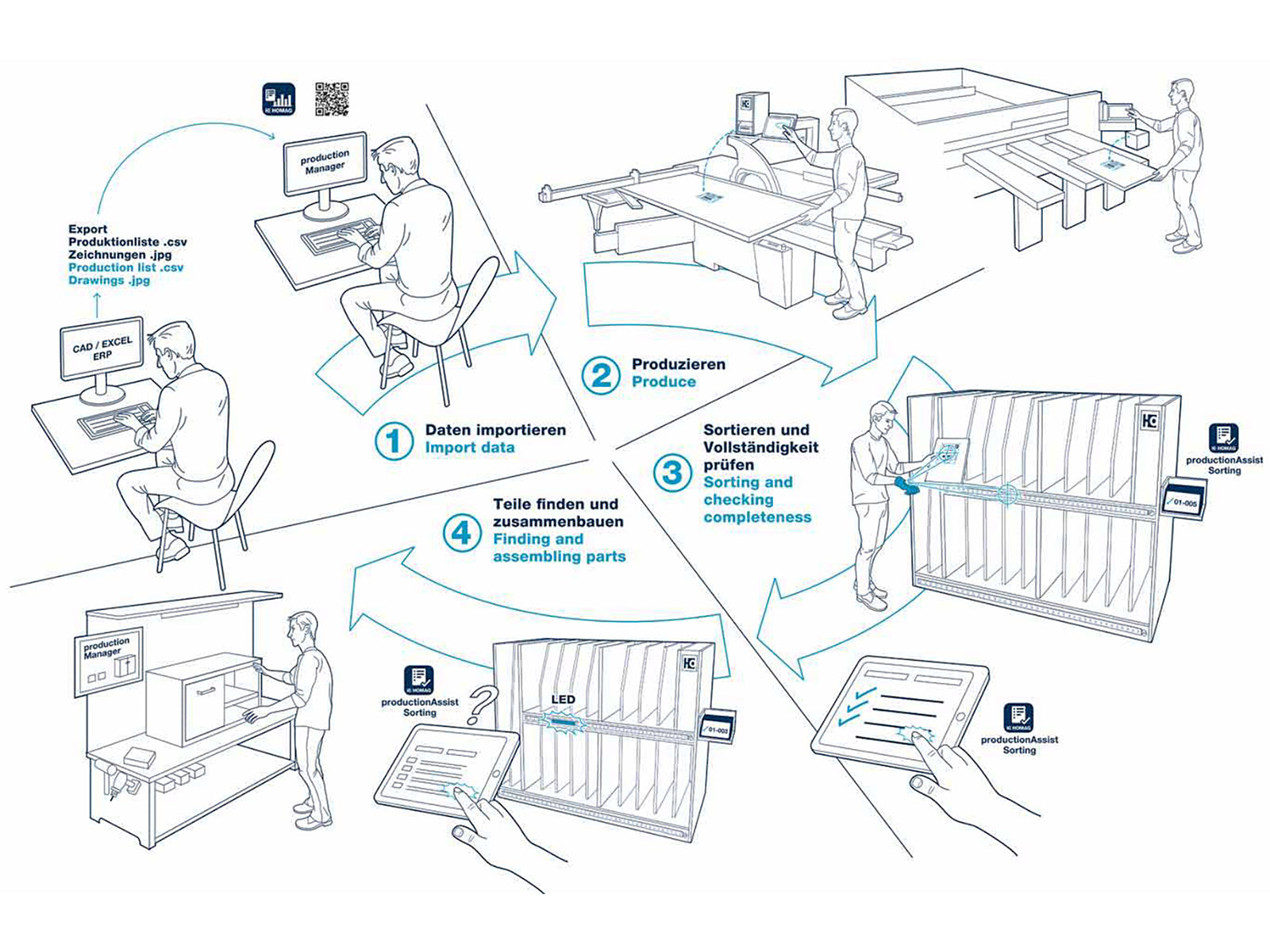

The workflow in the workshop:

1.  To use the Sorting Production Set optimally, you require two apps: productionManager (digital job folder) and productionAssist Sorting (production assistant for sorting components at the workstation in the workshop). You also need a sorting rack. The first step takes place in the work preparation . Here, an order is first created or imported in the digital job folder, the "productionManager". Once the order has been released, processing starts.

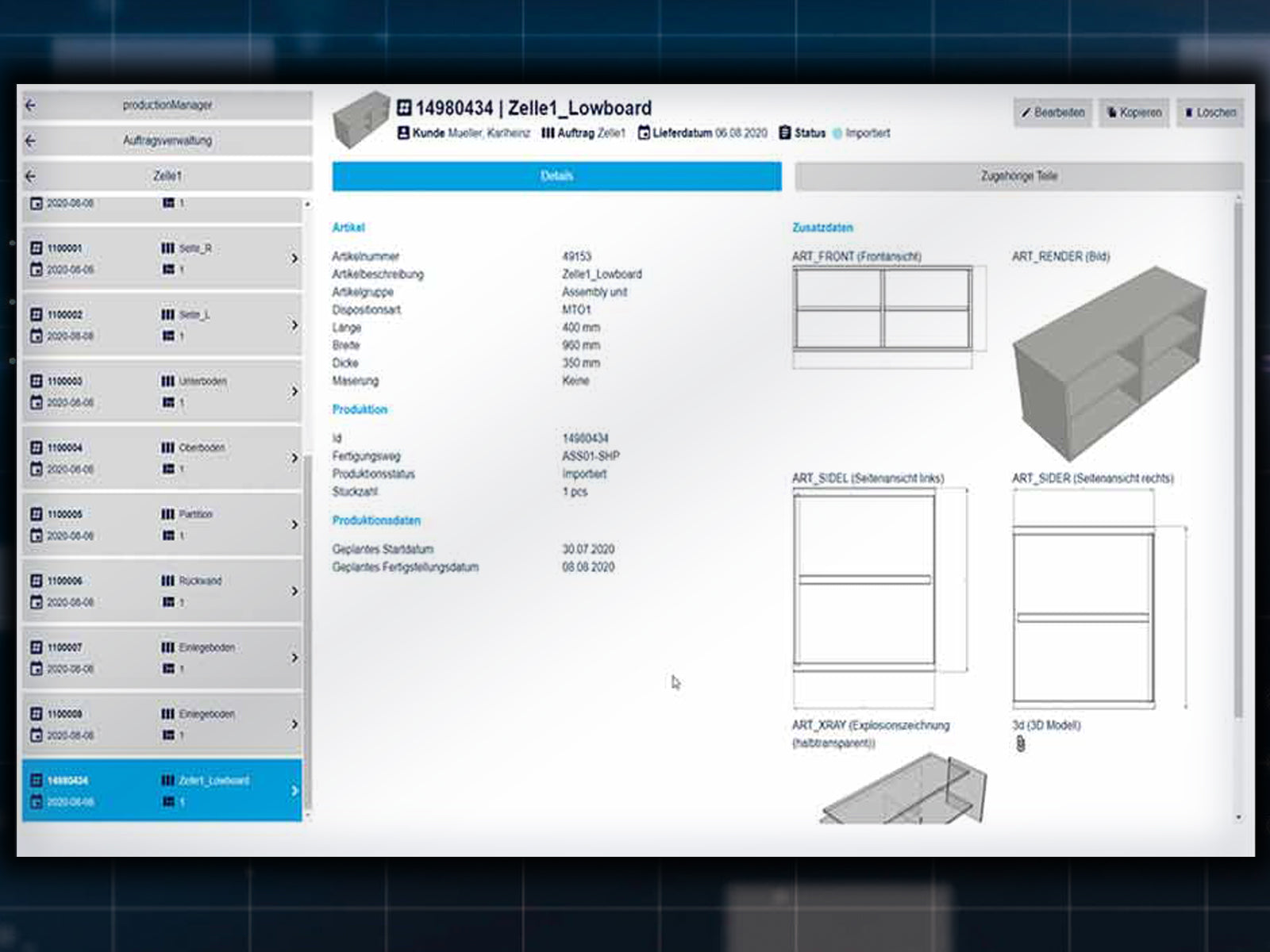

2. During the production of your furniture, your digital job folder now contains all of the required information for each component and an overview of the status of all your jobs.
3. After the single parts have been processed, the "productionAssist Sorting" on the tablet and the sorting rack support you in preparing parts for the assembly area.
4. Already during the cutting process, each workpiece receives an individual label

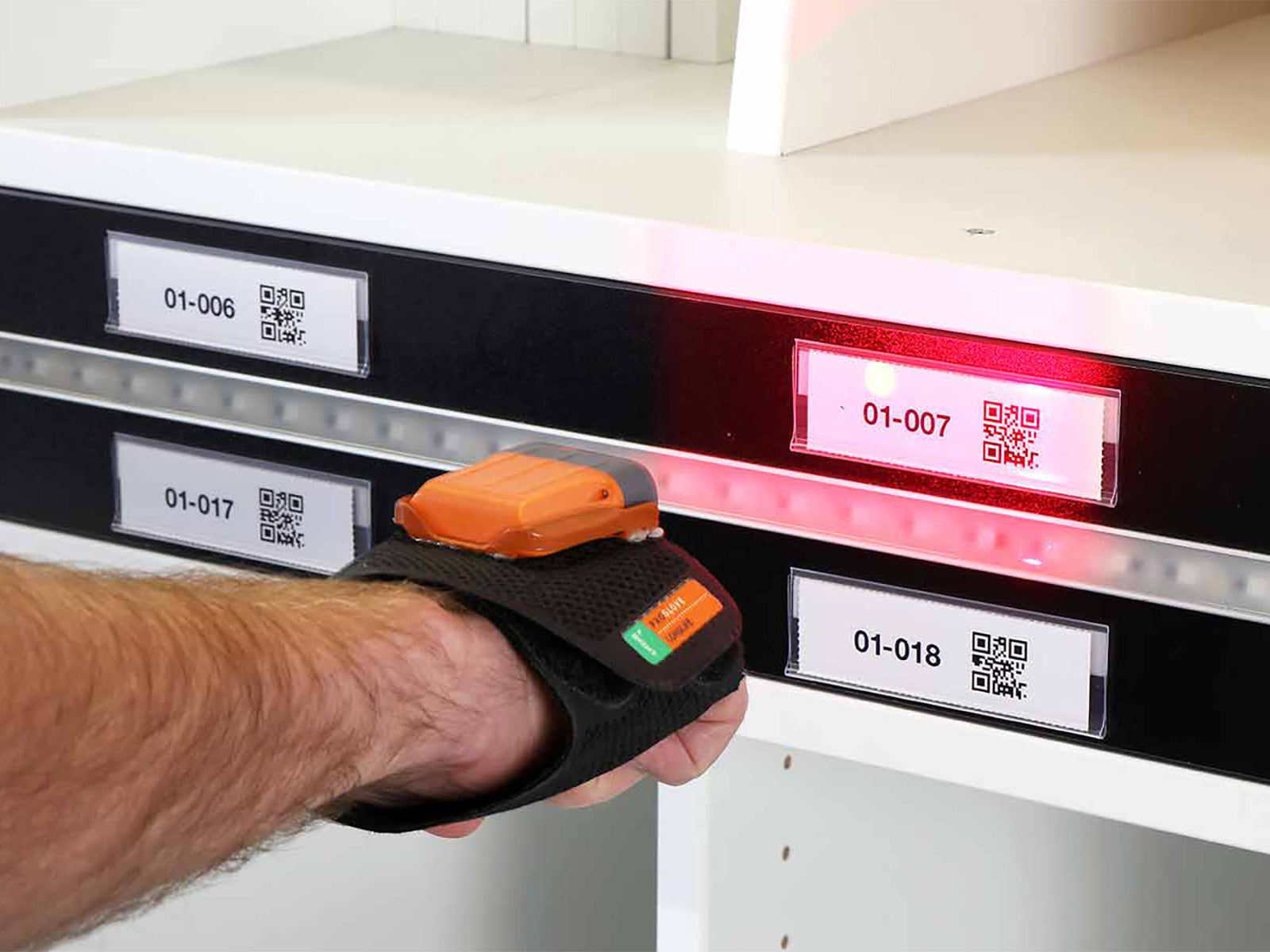

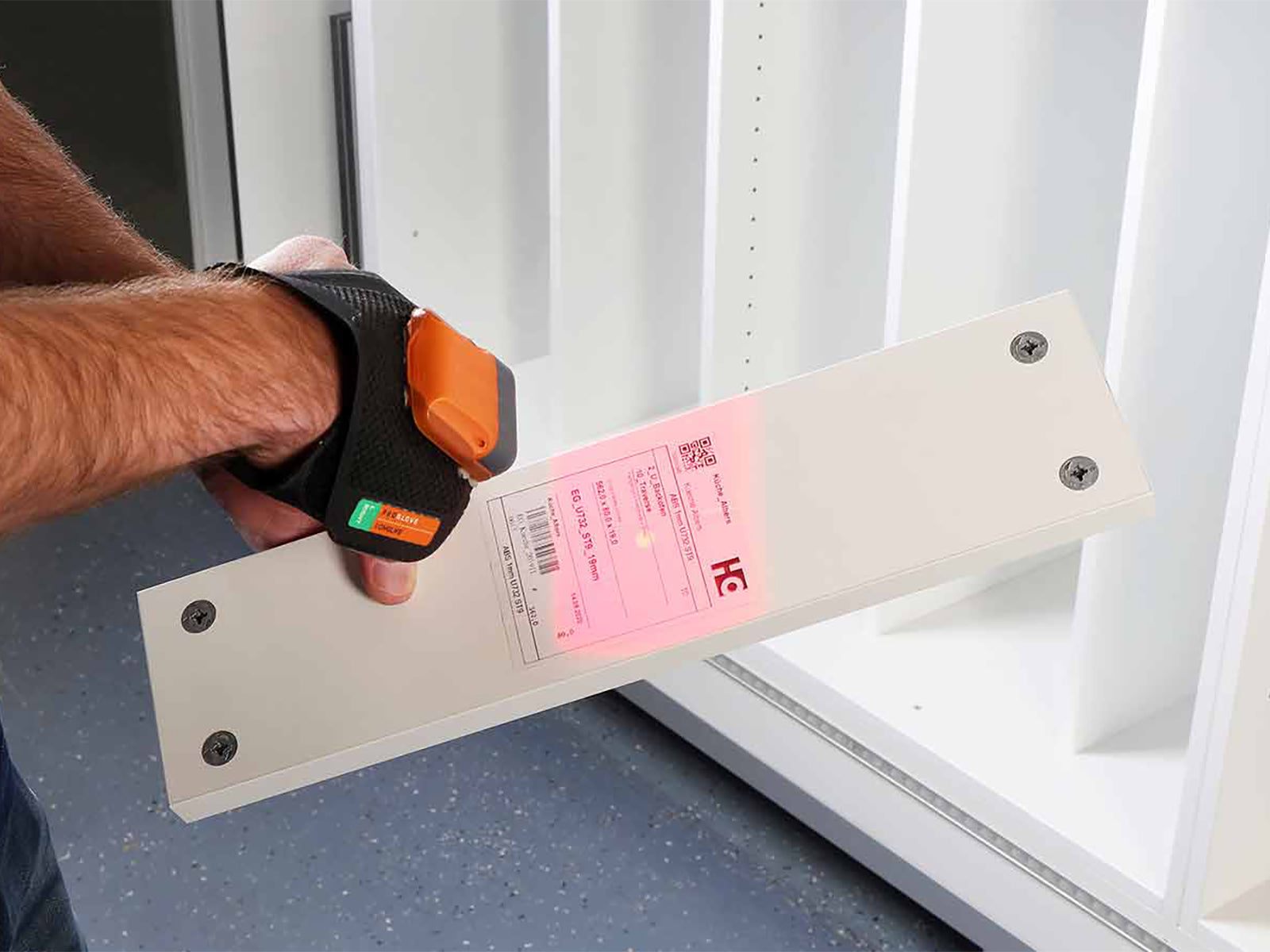

   for identification. After processing, the finished parts can be sorted into the rack. To do this, you scan the label on the workpiece and the app suggests a compartment in the rack for storage. The part assignment can be done manually in the app or by scanning the compartment barcode, e.g. with a scanner glove.

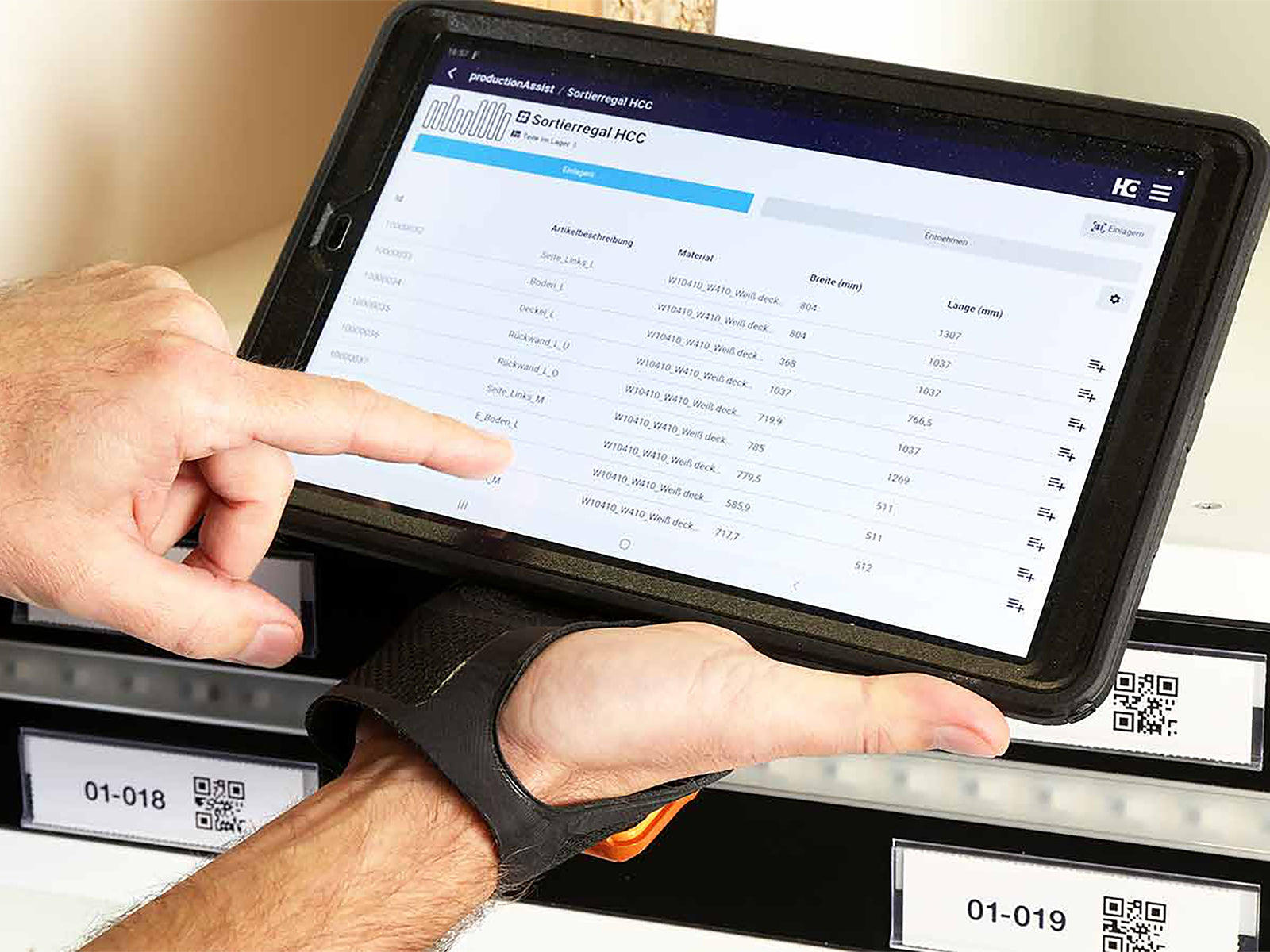

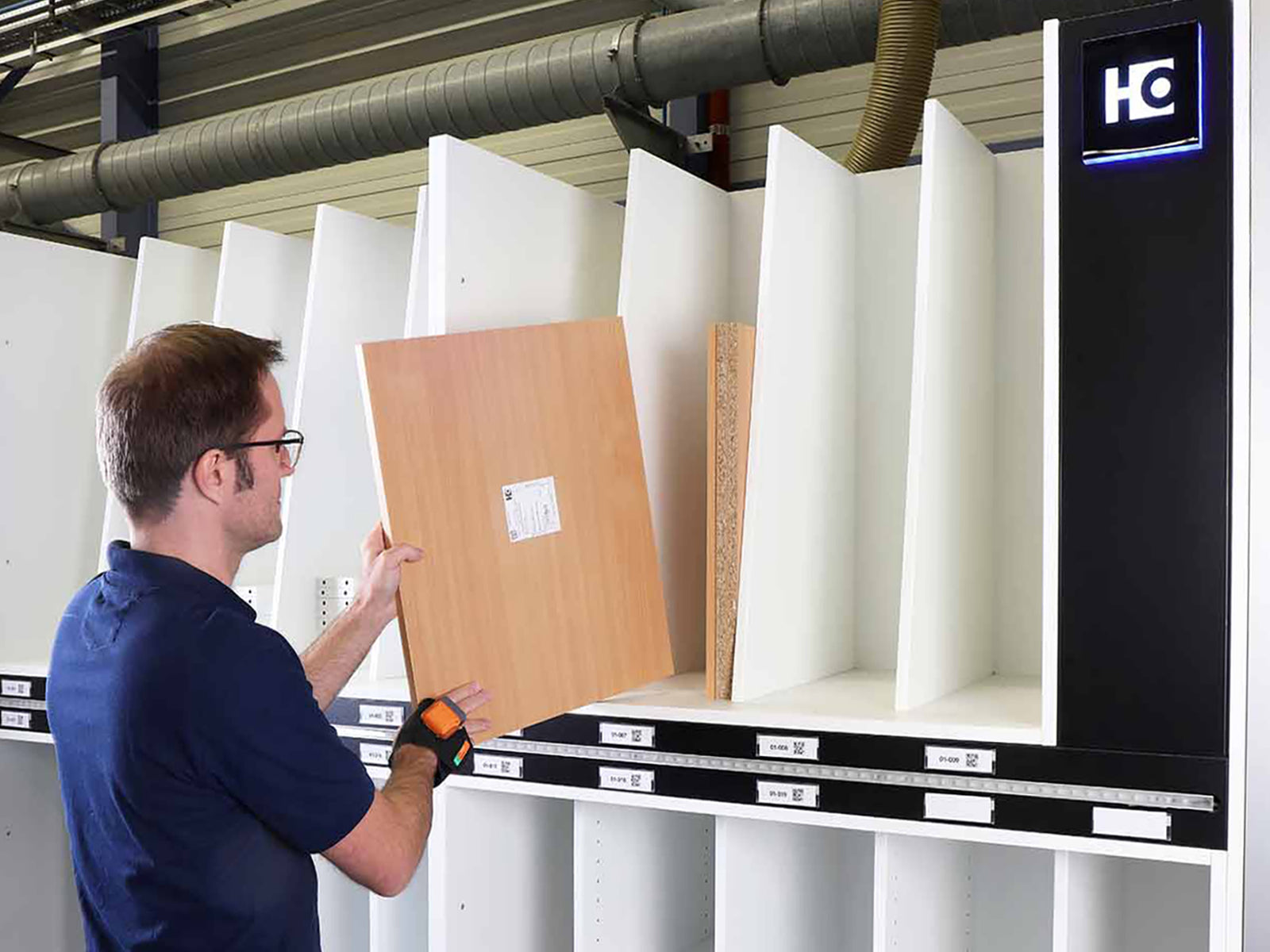

5. Next, sort all finished parts into the rack systematically (by job item/article). The "productionAssist Sorting" app shows the sorted parts per item and compartment. An LED display on the rack also provides support during sorting and the removal of parts.
6. When all parts of a piece of furniture are complete, the app provides feedback that
   the order is complete. At the same time, you can display the missing parts for each order in the app at any time. As soon as you want to remove the parts of the order from the rack, the app and the LEDs on the rack show you in which compartments the corresponding parts are located. Now it's time to remove and start assembling!
