EGDETEQ S-300

EGDETEQ S-300

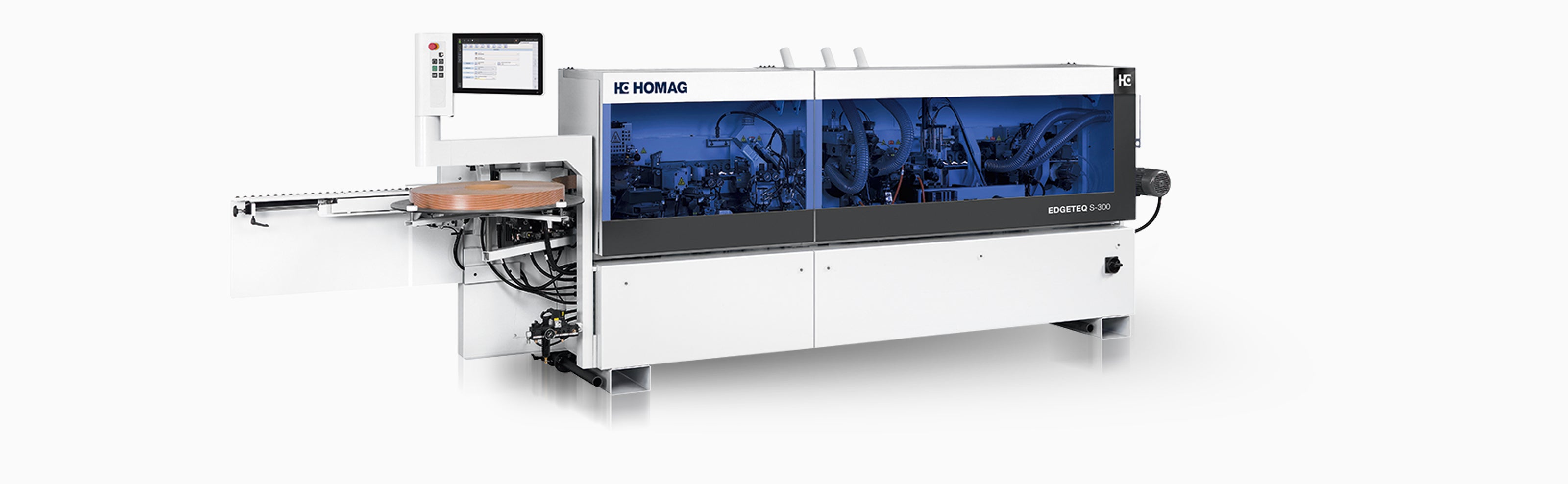

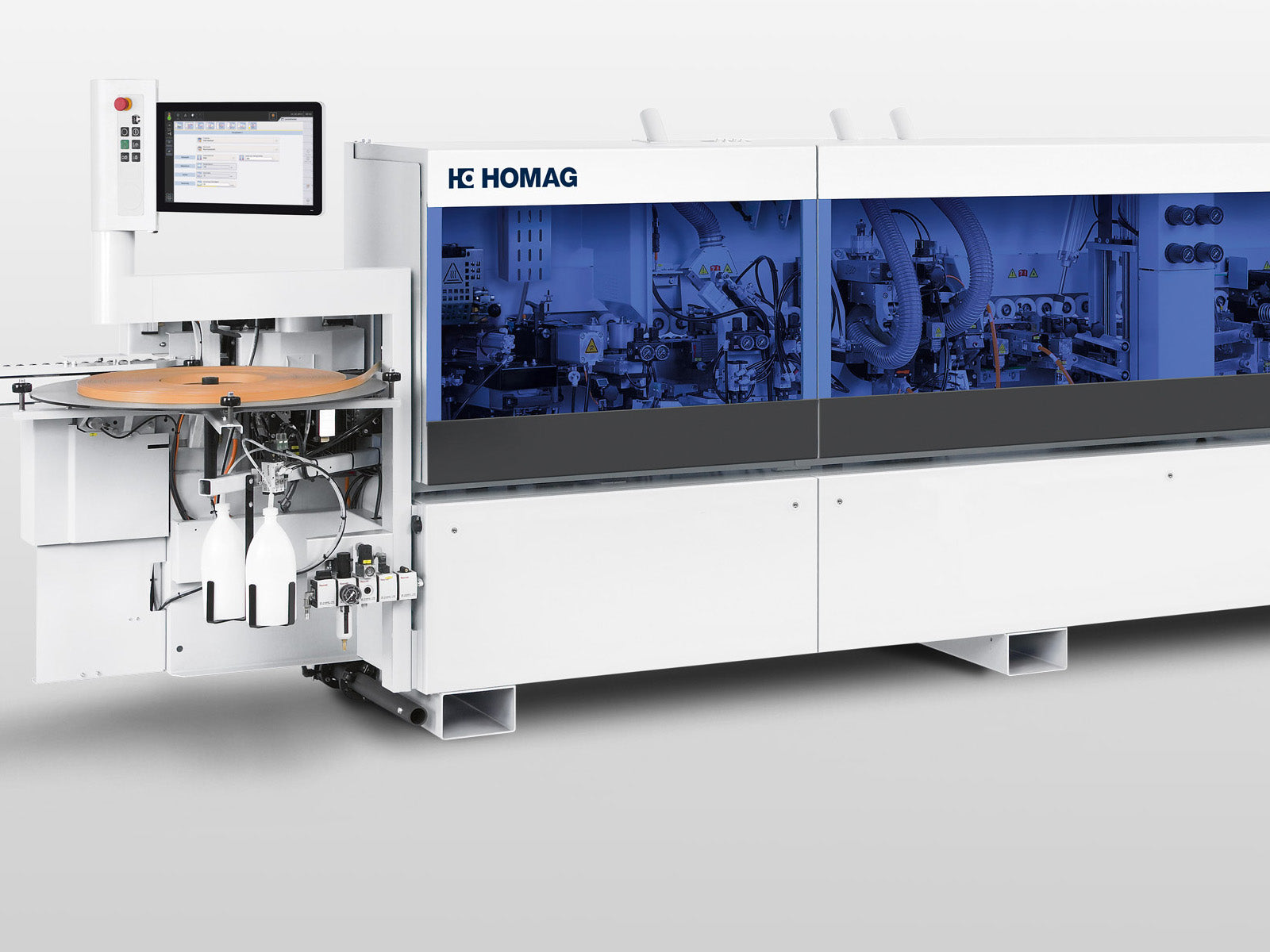

The EDGETEQ S-300 is a reliable and efficient edgebanding machine that offers precision and versatility in edge gluing applications. It is suitable for use in various woodworking settings, including small and medium-sized companies as well as craft businesses. The machine features a flexible glue application system that allows for easy changing of the glue type and color, including EVA and PUR.
Get A Quote View full details

Collapsible content

Highlights

  • High quality furniture with high quality edges
  • More output due to high availability
  • Low energy requirements
  • High levels of efficiency
  • Optimum price/ performance ratio





    Technical Details

    Overall Length  5273 mm
    Feed Speed  8 -14 m/min
    Work piece width*  70
    Work Piece Thickness   8 - 60  mm
    Edge Thickness Rollers  0.3 - 3 mm
    Edge Thickness Strips / molding  0.4 - 8 mm
    * For work piece thickness 8-22mm. Depends on work piece thickness

    Features

    • Flexible glue application system for easy changing of the color and glue type (EVA, PUR)

    • Multi functional profile trimming unit for corner rounding and flush trimming

    • Short setup times thanks to pneumatic adjustment of the units

    • Multi-stage technology for highly flexible use with changing materials (As standard available at the edition-model)

    • Zero joints with airTec for optimum joint-free finish (As standard available at the airTec-model)

    • V-belt top pressure for out standing quality, as it ensures that work pieces are ideally clamped for processing

    • Precise end trimming unit, equipped with THK guides. Chamfer/ straight adjustment by easy tilting

    • The multi stage trimming and scraping units always offer the ideal radius and best results.

    • Trimming of the overhang on top and bottom side as well as contour trimming unit. Equipped with autom. adjustment to switch between thick and thin edges.

    • The quality of your products increased by the use of perfectly co-ordinated finishing units.
