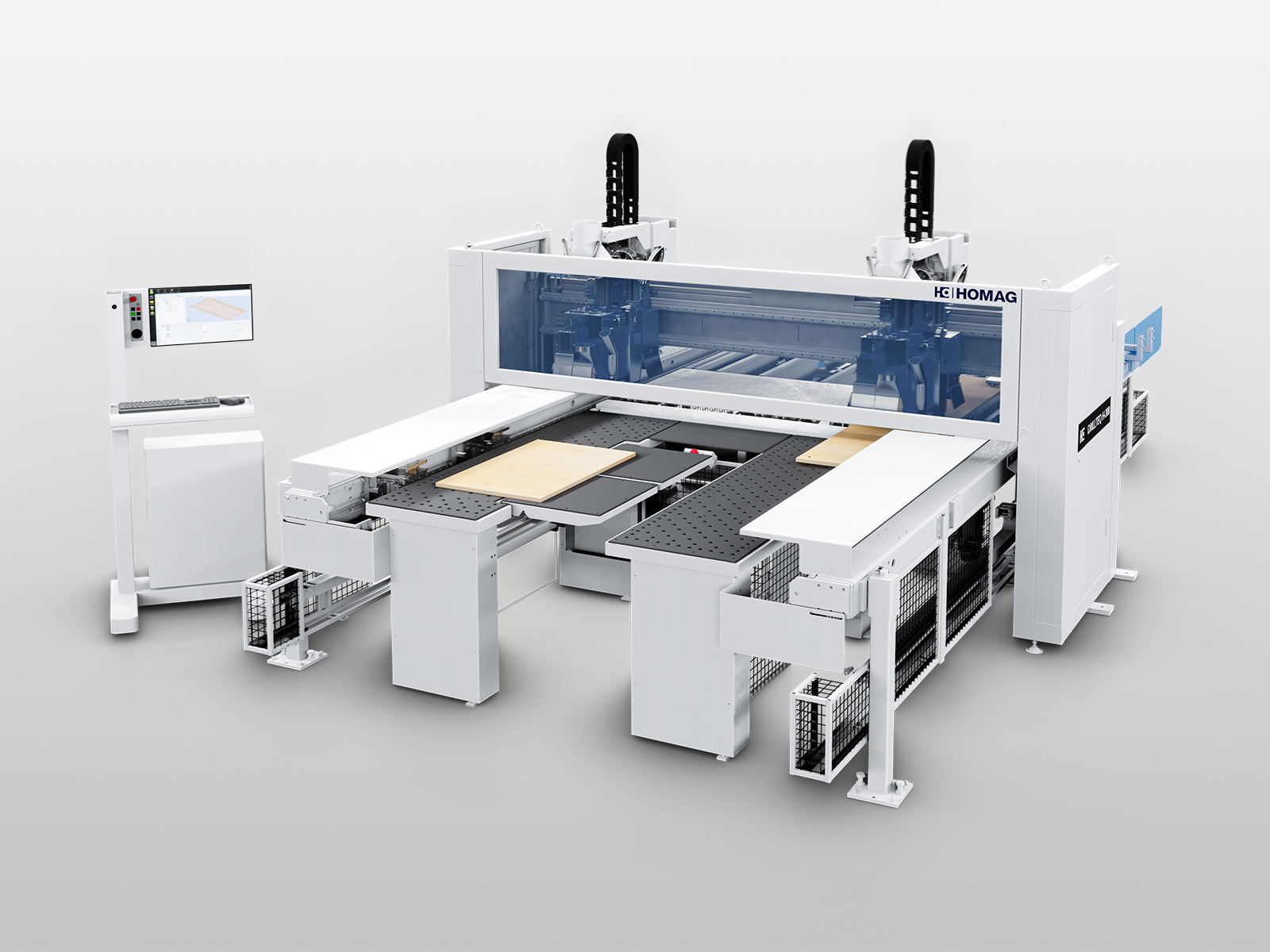

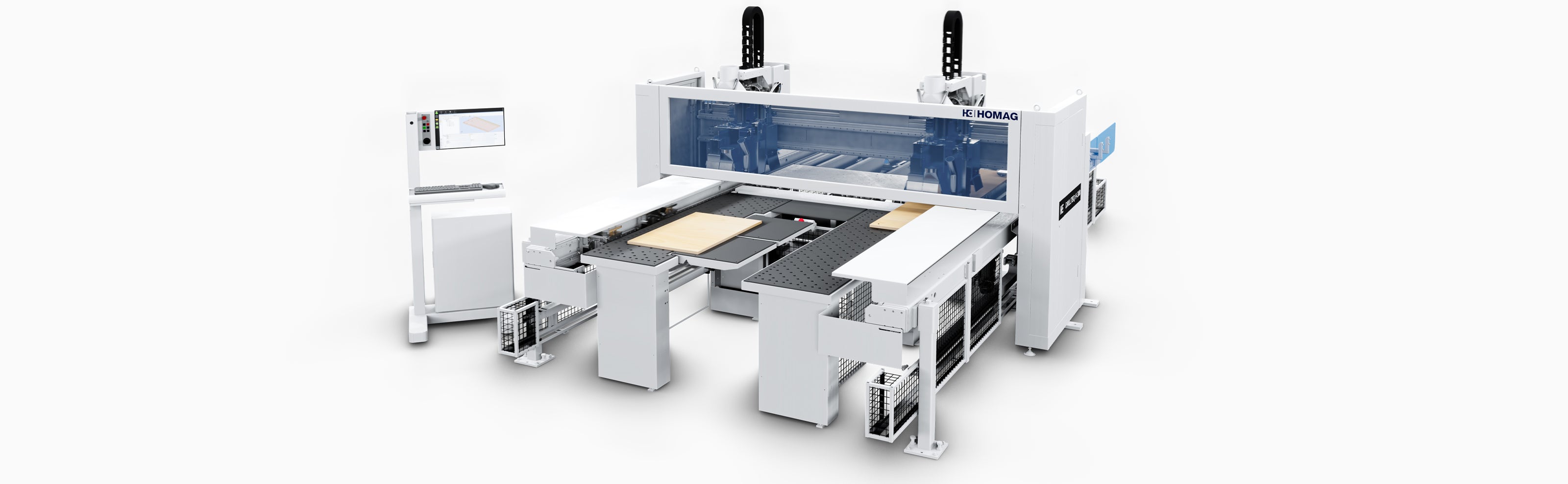

DRILLTEQ H-308
DRILLTEQ H-308
Share
Collapsible content
Production Description
By feeding two work fields at the same time, the DRILLTEQ H-308 offers virtually two machines in one. While production is running on one work field, the work piece can already be prepared for seamless further processing on the second. This guarantees high availability and highly flexible production. The machine running time can be extended up to almost 75%. Work interruptions such as breaks or down times are reduced to a minimum.
Whether flexibility for high variant diversity through batch size 1 production or efficiency through series production – the DRILLTEQ H-308 offers the right solution for you.
Highlights
- CNC controlled clamping system on both sides

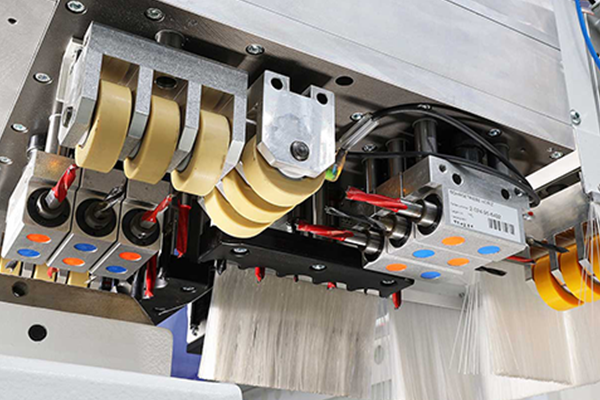

- High speed bottom processing unit
- High speed top head processing unit

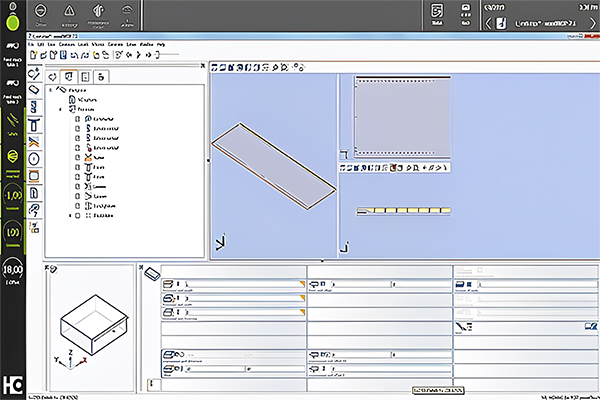

- woodWOP software
- The next generation powerTouch user interface
- Comprehensive safety concept
Benefits
Simple and Intuitive Controls
Sanding Heads
Technical Details
FOOTPRINT WITHOUT SWITCH CABINET
| L | MM | 5910 |
| W | MM | 3900 |
| H | MM | 2530 |
WORK PIECE DIMENSION
| Length | MM | 250 - 2500 (3050) |
| Width (Single part) | MM | 60 -1250 |
| Width (Double parts) | MM | 2 X 620 |
| Height | MM | 8 - 40 |
DRILLING HEAD - TOP 1 & 2
| Vertical Spindles | No. | 2 X 13 |
| Vertical Spindle Clamping | Patented | Yes |
| Horizontal spindles in X+/X- | No. | 2 X (3X+/3X-) |
| Horizontal spindles in Y+/Y- | No. | 2 X (3Y+/3Y-) |
| Frequency controlled | RPM | 1250 - 7500 |
DRILLING HEAD - BOTTOM 1
| Vertical spindles | No. | 14 |
| Vertical spindle clamping | Patented | Yes |
| Frequency controlled | RPM | 1250 - 7500 |
ROUTER
| Frequency controlled | RPM | 18000 |
| Power | KW | 3.5 |
| Collet | Type | ER25 |
INFEED TABLE
| Type | Air cushion table |
| Direction | Throughfeed |
| Direction | Reserved |
OTHERS
| Outfeed Table | Support Table |
| Dust Extraction Diameter | 2 X 160 MM |
| Maximum connected load | 33 KW |
| Compressed Air | 7 bar |
| Weight | 4800 KG approximately |
Features
- Routing and Drilling units perform in highspeed. 6 sided-processing along 2 working fields

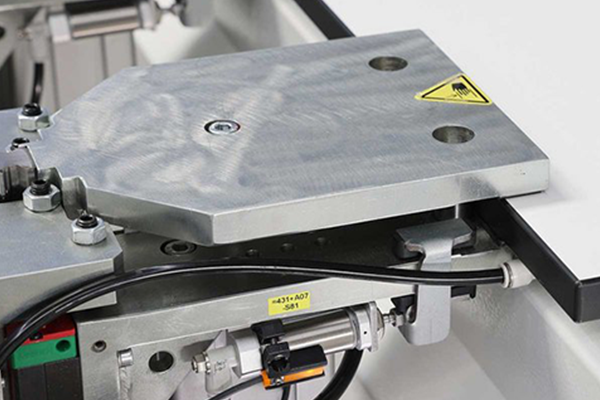

- 4 CNC-controlled clamping devices ensure permanently firm and precise positioning of the workpieces – regardless of the speed
- Even workpiece dimensions of length 250-2500 and width 60-1250 mm (2 x 620 mm) are easy to handle
- The patented spindle clamp ensures an always accurate drilling depth for all drilling
- The closed straight guiding system is protected against dust and dirt and thus very durable

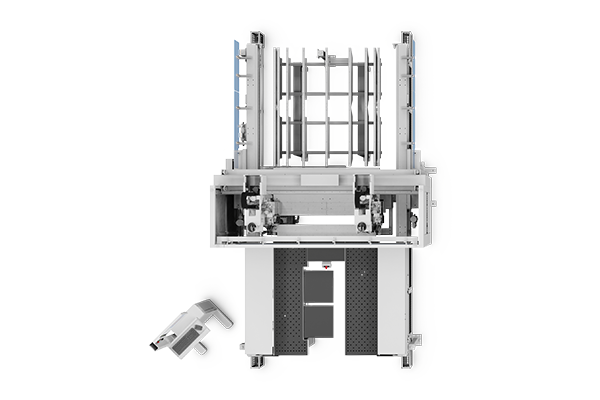

Machine Dimension
Download Brochure
Book a live presentation
Book your appointment and experience your solution live in action. As an on-site event in our showroom or as an online event from the comfort of your home. We will advise you to your personalized requirements. The choice is yours!
DRILLTEQ H-308
The DRILLTEQ H-308 CNC processing center is a highly efficient and versatile machine for drilling and routing applications. The machine features a patented clamping system that ensures secure and precise workpiece positioning, and a programmable drilling depth that improves processing accuracy while reducing waste. With a user-friendly interface and easy-to-use software, the DRILLTEQ H-308 offers performance and reliability. Whether it's drilling, routing, or complex machining tasks, the DRILLTEQ H-308 is the perfect solution for woodworking professionals seeking advanced CNC processing capabilities.
