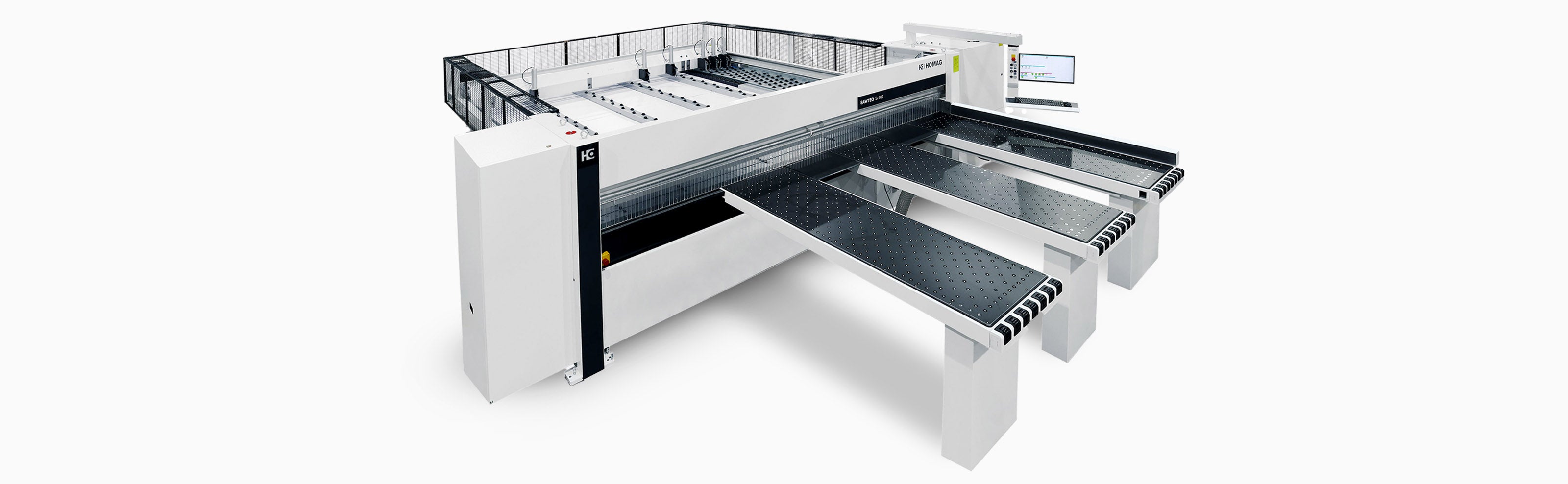

SAWTEQ S-160
SAWTEQ S-160
The SAWTEQ S-160 offers you exactly what you need for horizontal panel cutting: Power, precision and, above all, flexibility. This starts with the software: The SAWTEQ S-160 is equipped with the latest CADmatic version including quickTip and CADplan cutting plan optimization - making your cutting more sustainable and easier than ever before.
Share
Collapsible content
Production Description

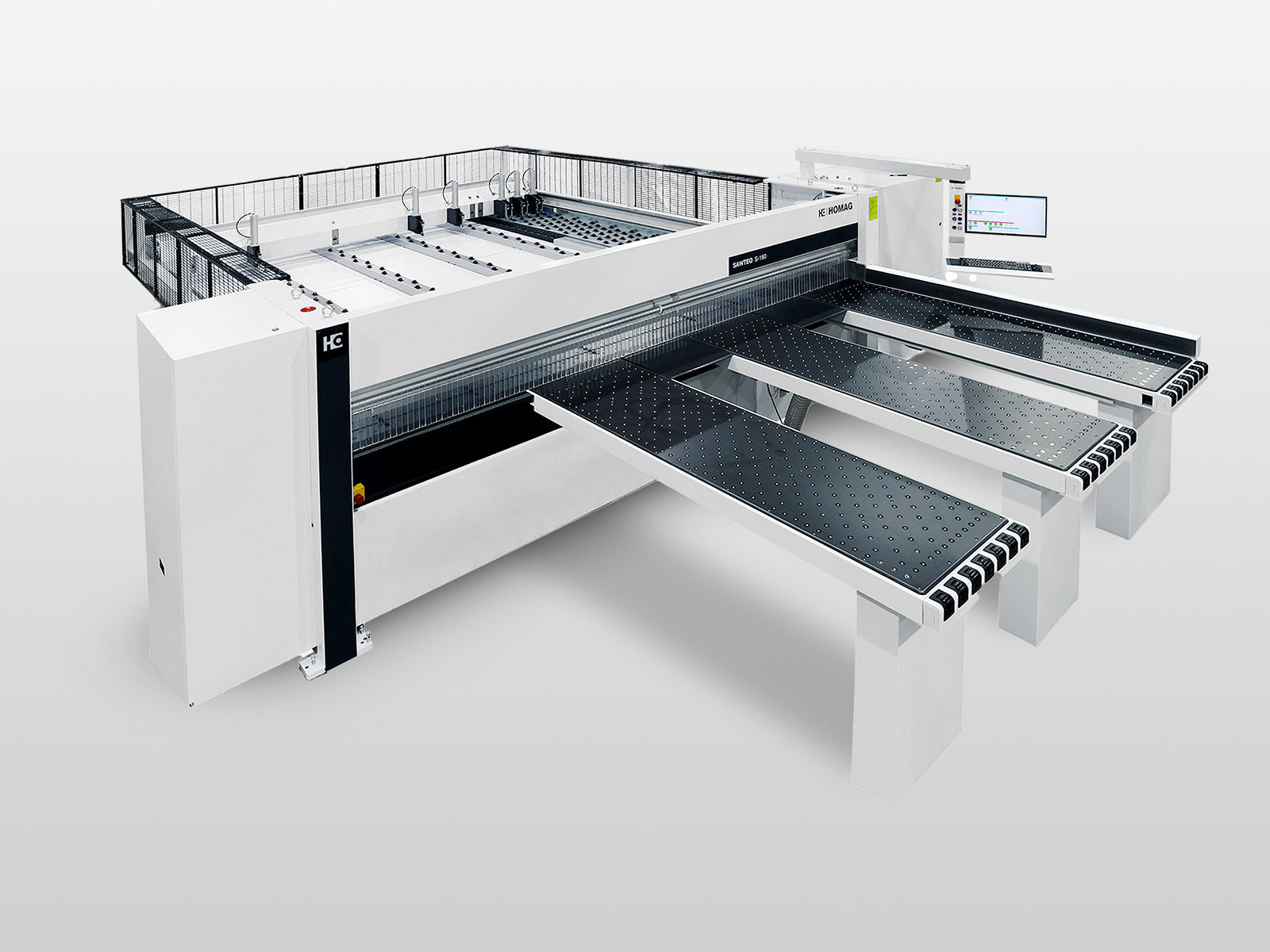

Compact in size, sturdily built and equipped with proven HOMAG technologies. In short: The SAWTEQ S-160 is a panel dividing saw that is perfect for the requirements of up-and-coming industrial companies. In addition, the machine has a comprehensive safety concept. Following German standards and a specific choice of components, we‘ve made working with the SAWTEQ S-160 not only comfortable, but also safe to handle.
Highlights
- Label with part graphic and labling program
- toolManager for a sharp blade
- Convenient data backup
- Conversion program CADlink
Benefits
Simple and Intuitive Controls
Sanding Heads
Technical Details
|
Saw blade projection |
95 mm |
|
Cutting length |
3,500 mm |
|
Clamps |
6 (optional up to 4 more) |
|
Saw carriage speed |
up to 120 m/min |
|
Program fence speed |
80** m/min |
|
Operating software |
CADmatic 5 |
|
Operating system |
Windows |
|
Monitor |
21,5" TFT flatscreen display |
|
Main saw motor |
15 kW |
|
Scoring saw motor |
2,2 kW |
|
Main saw blade |
380 x 4,4 x 60 |
|
Scoring saw blade |
200 x 4,4 - 5,4 x 45 |
|
Average total air requirement (Nl/min) |
150 Nl |
|
Dust extraction system |
3,350 m³/h (26 m/sec) |
Features
Machine Dimension
|
Width |
Depth |
Height |
|
5,307 mm |
6,488 mm |
1,540 mm |
