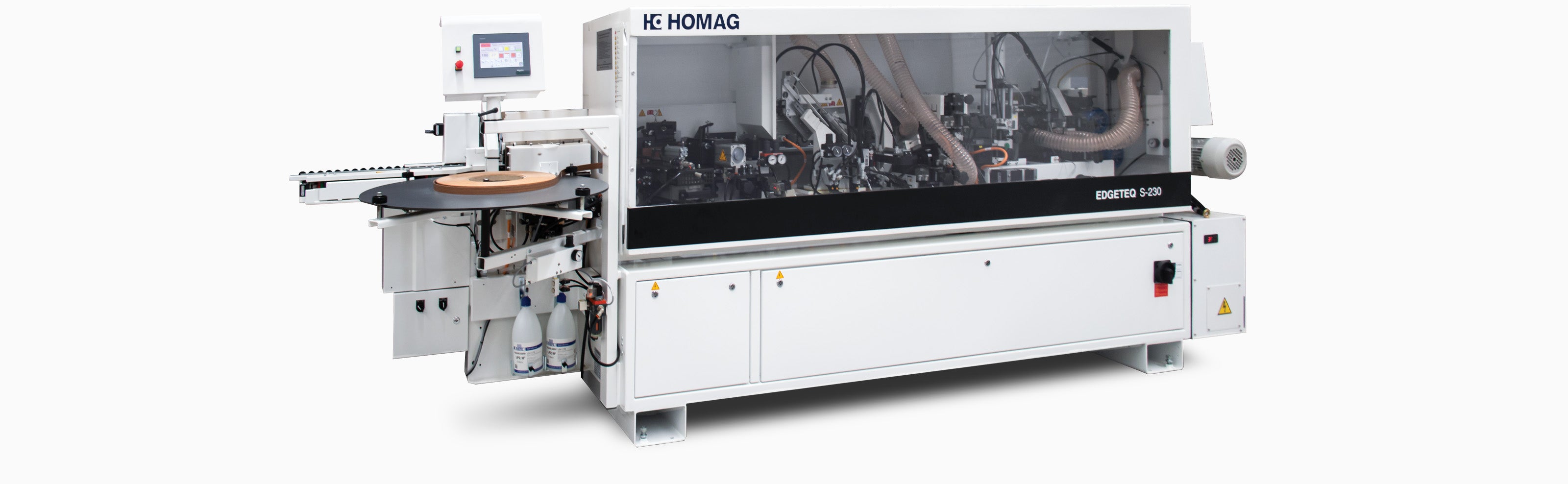

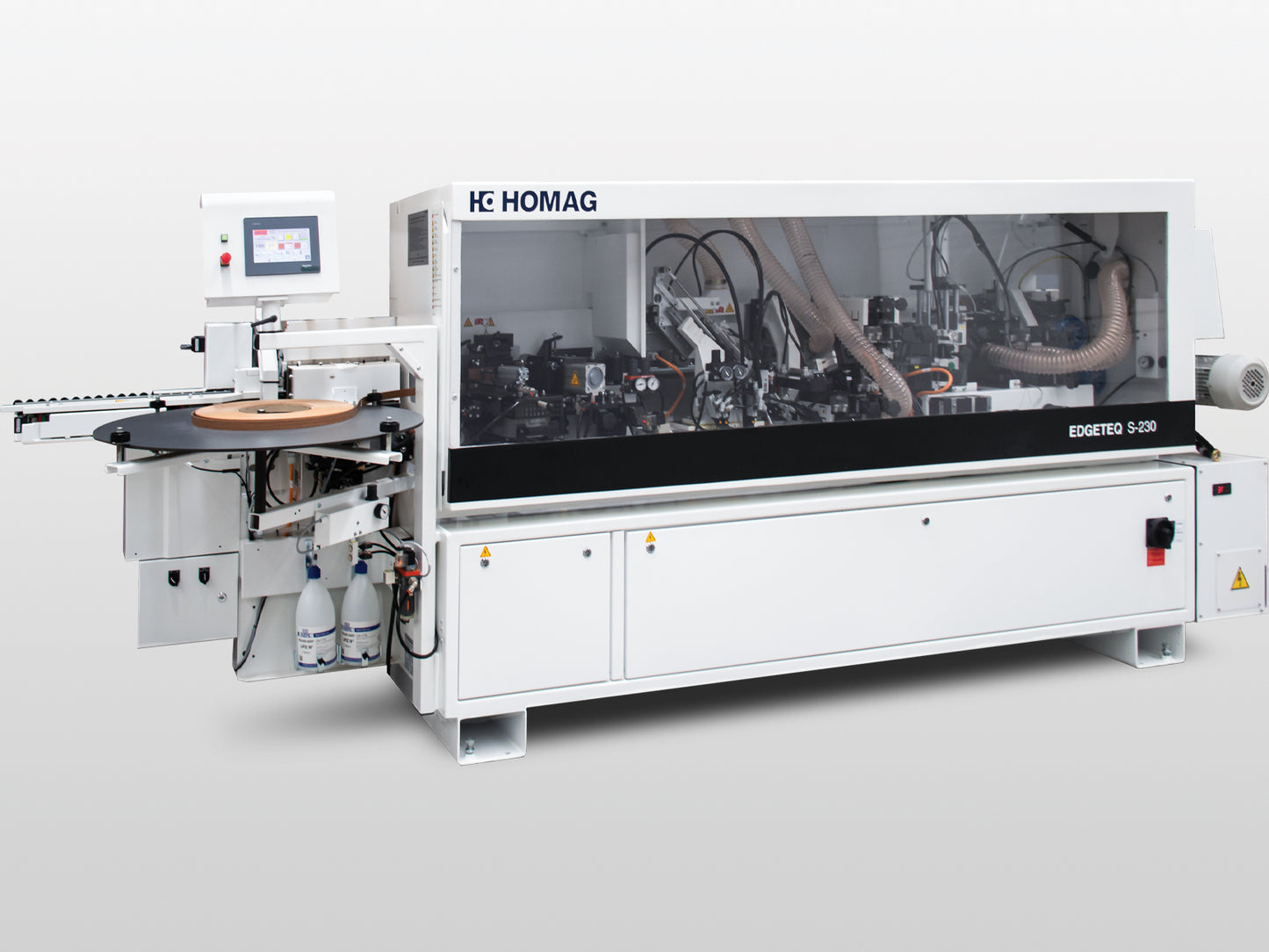

EDGETEQ S-230/220FC | FCP

All machines of the EDGETEQ S-230 Series are equipped with a contact heating shoe that optionally activated transfers contact heat into the board edge directly prior to the glue application to the workpiece edge, this notably optimizing the gluing quality, especially with difficult edging materials or at very low ambient temperatures.

The Model 220 FC completes with the joint trimming unit, which removes the imperfection on the panels from the cutting process. The units are set by the operator using numerical indicators on each unit with the quick change from thin edge to thick edge material.

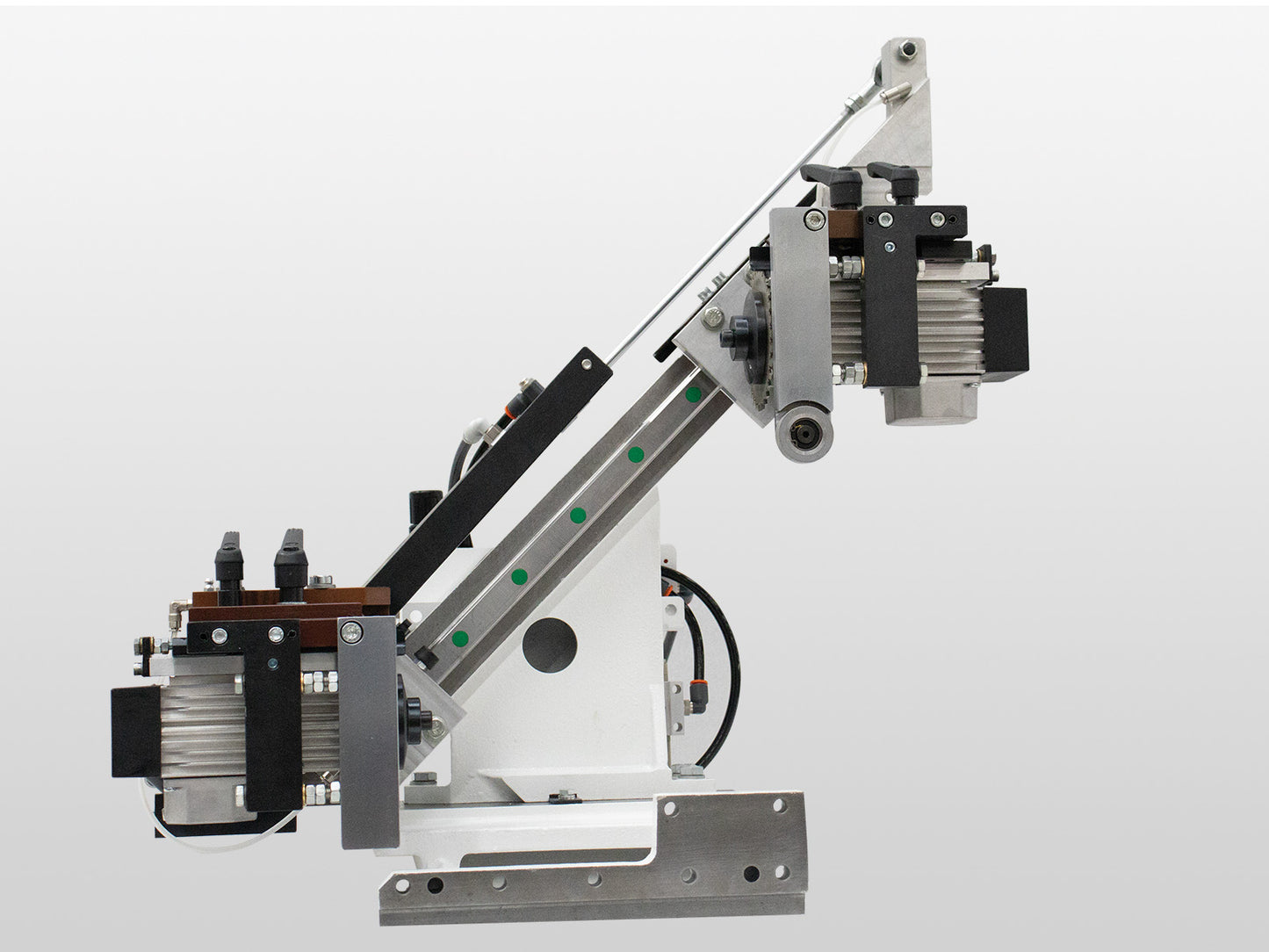

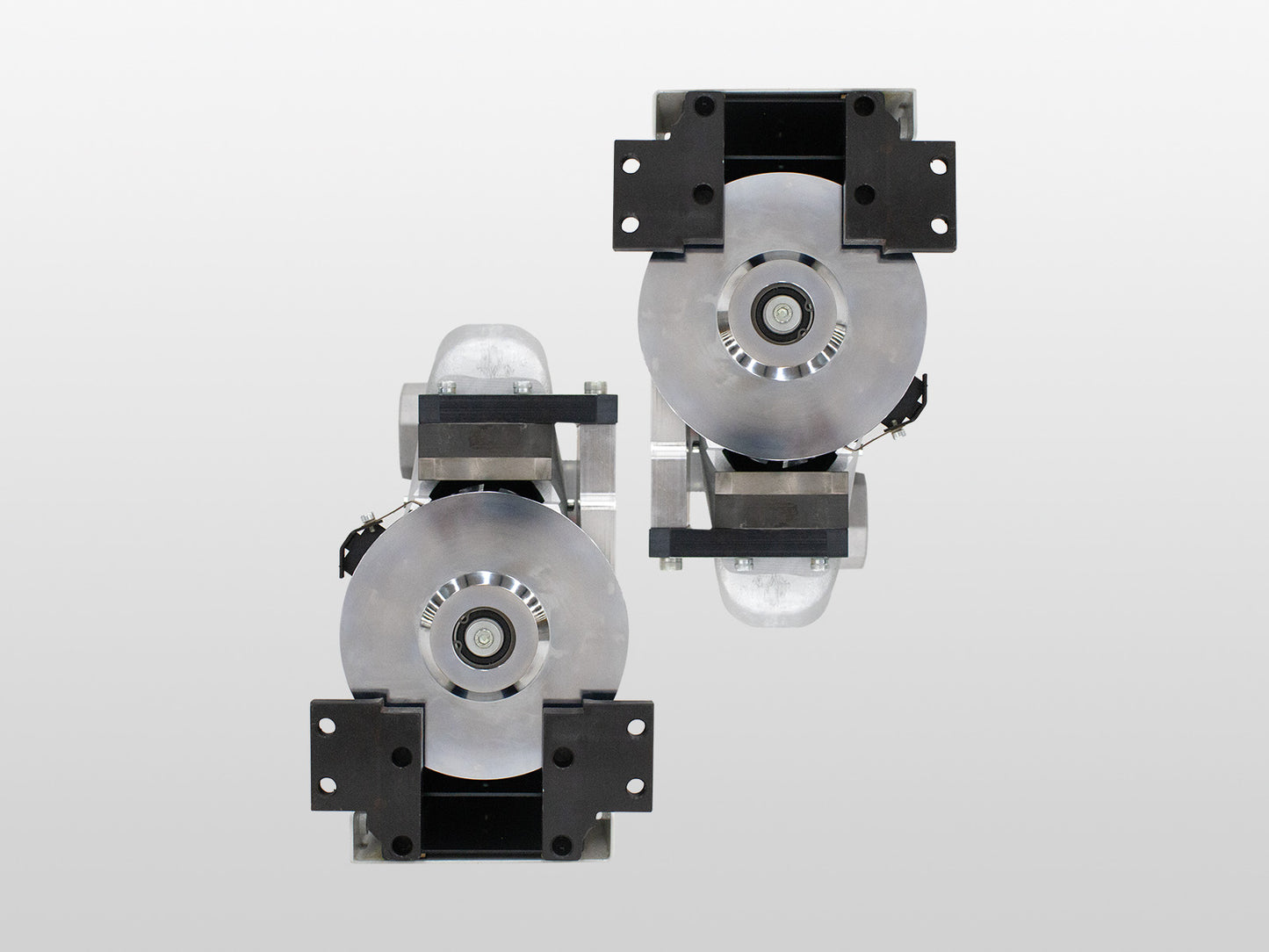

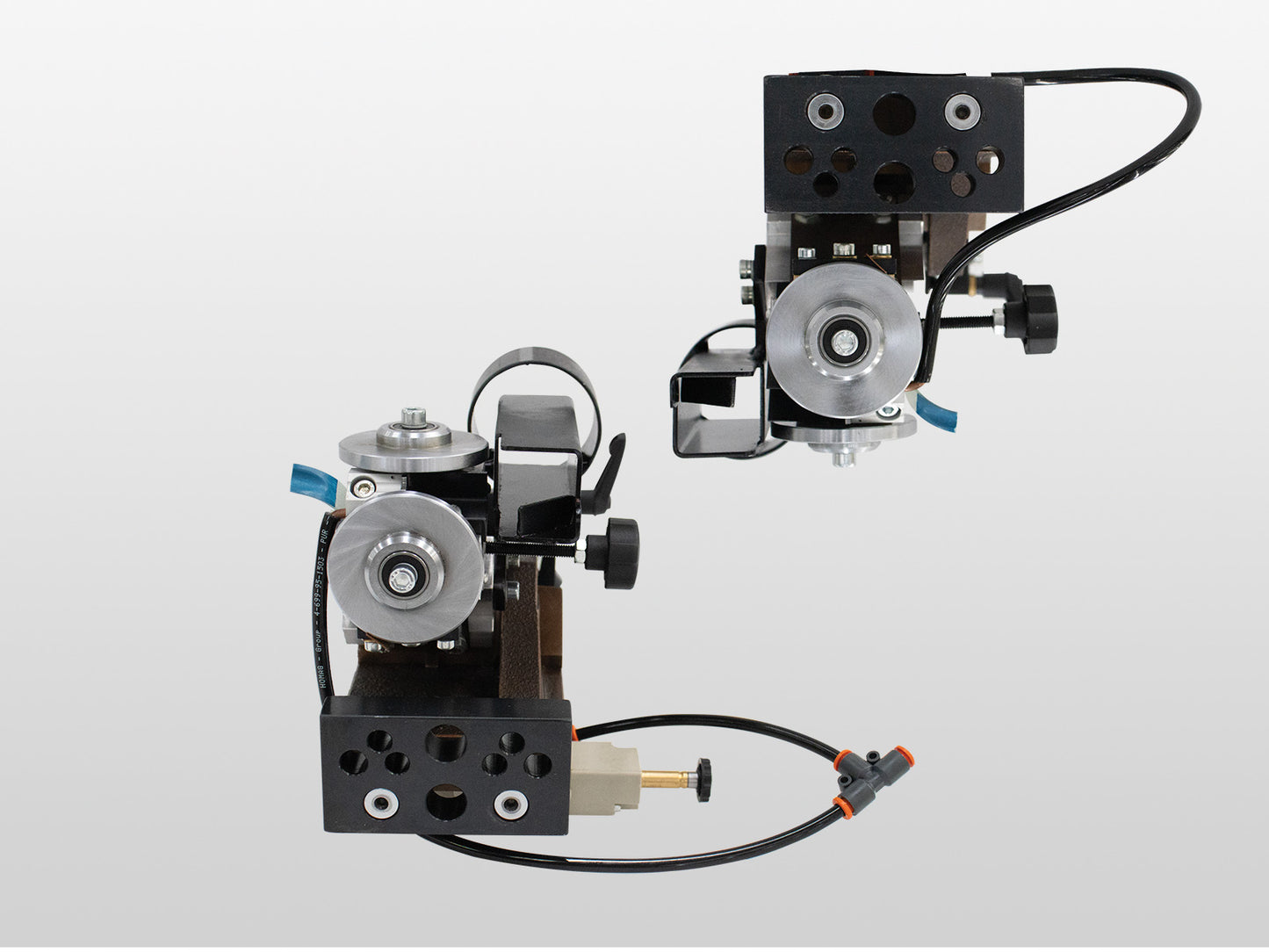

The Snipping unit, trimming unit and profile scraper of the model 220 FCP are managed automatically from 7’ touch HMI screen. The automatic engages and disengage of working units makes the machine more flexible and efficient during frequent changeover of production needs.

The feed speed of both EDGETEQ S-230 Model 220 FC and 220 FCP are 11 m/min.

• Perfect cut and high operating life due to diamond tipped tools for an optimum edge joint quality.
• Counter pressure device magazine for sensitive edges.

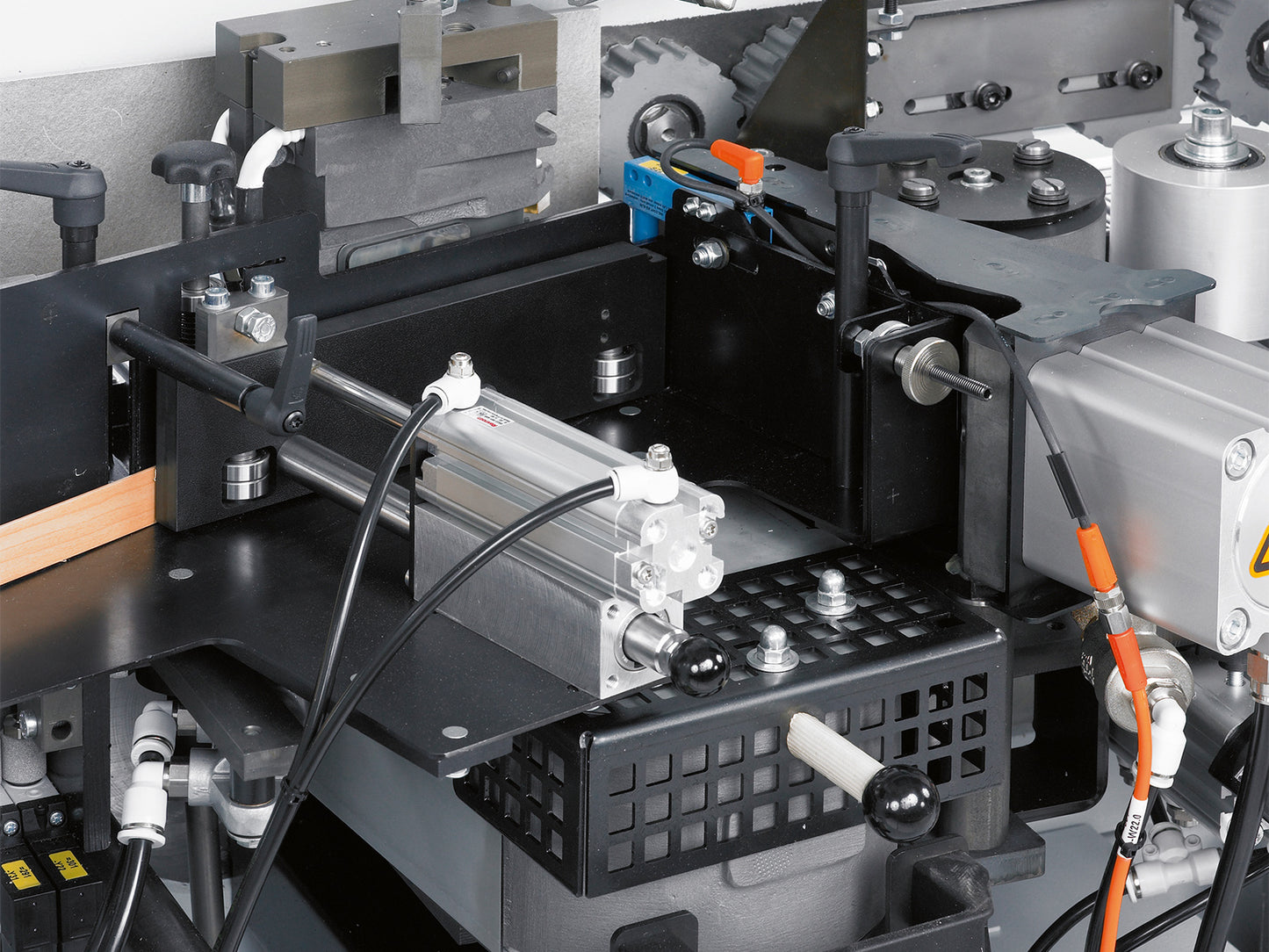

• Coil and automatic strip magazine for a reliable edge material supply. Optimal glue joints, by controlling the exact amount of glue.

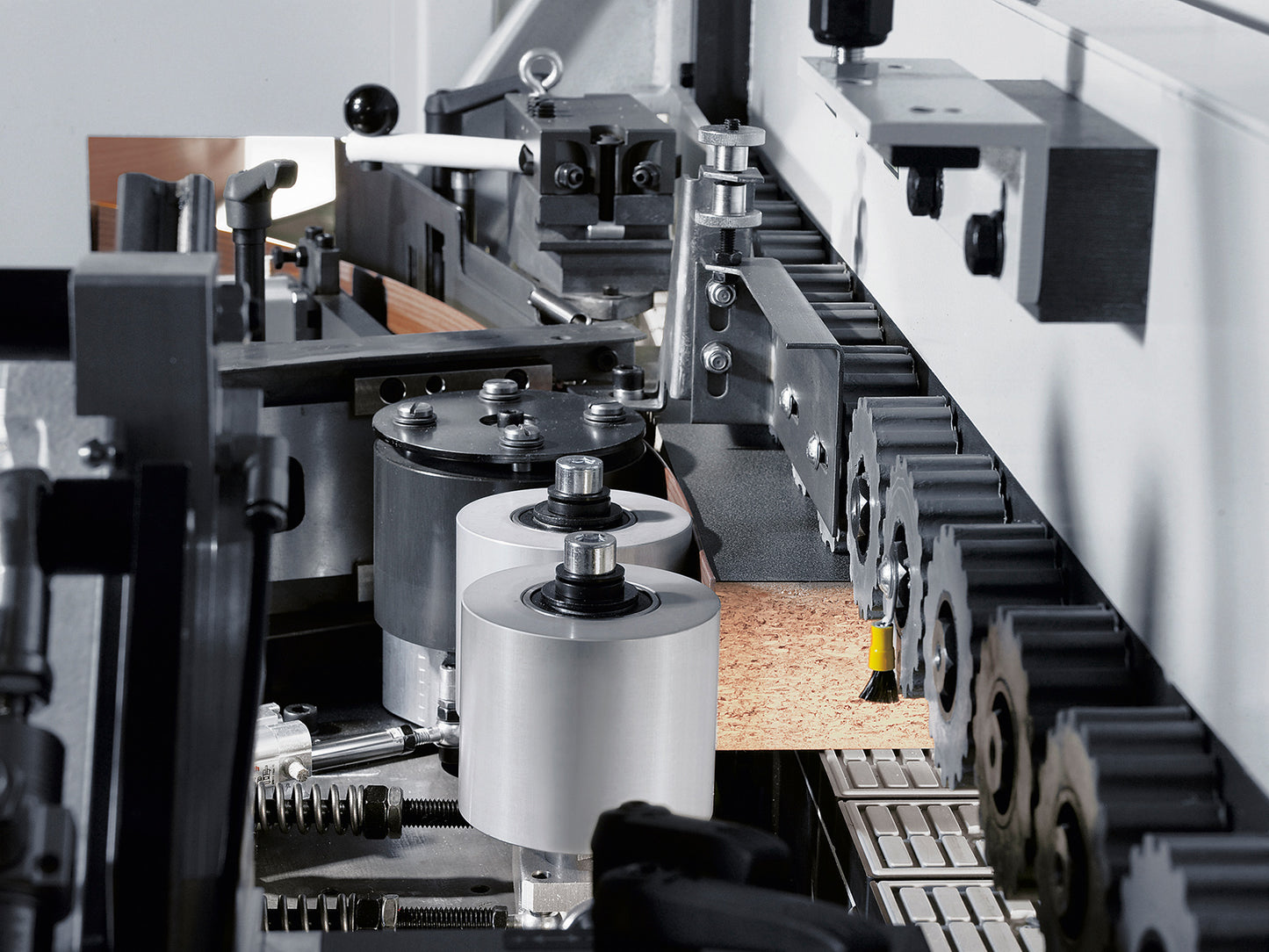

• Heavy pressure zone up to 3 mm edge thickness and 50 mm work piece height for an optimal glue joint.
• Precise end-cut through a strong end­ trimming unit, equipped with THK guides. Chamfer / straight adjustment by easily tilting the unit.

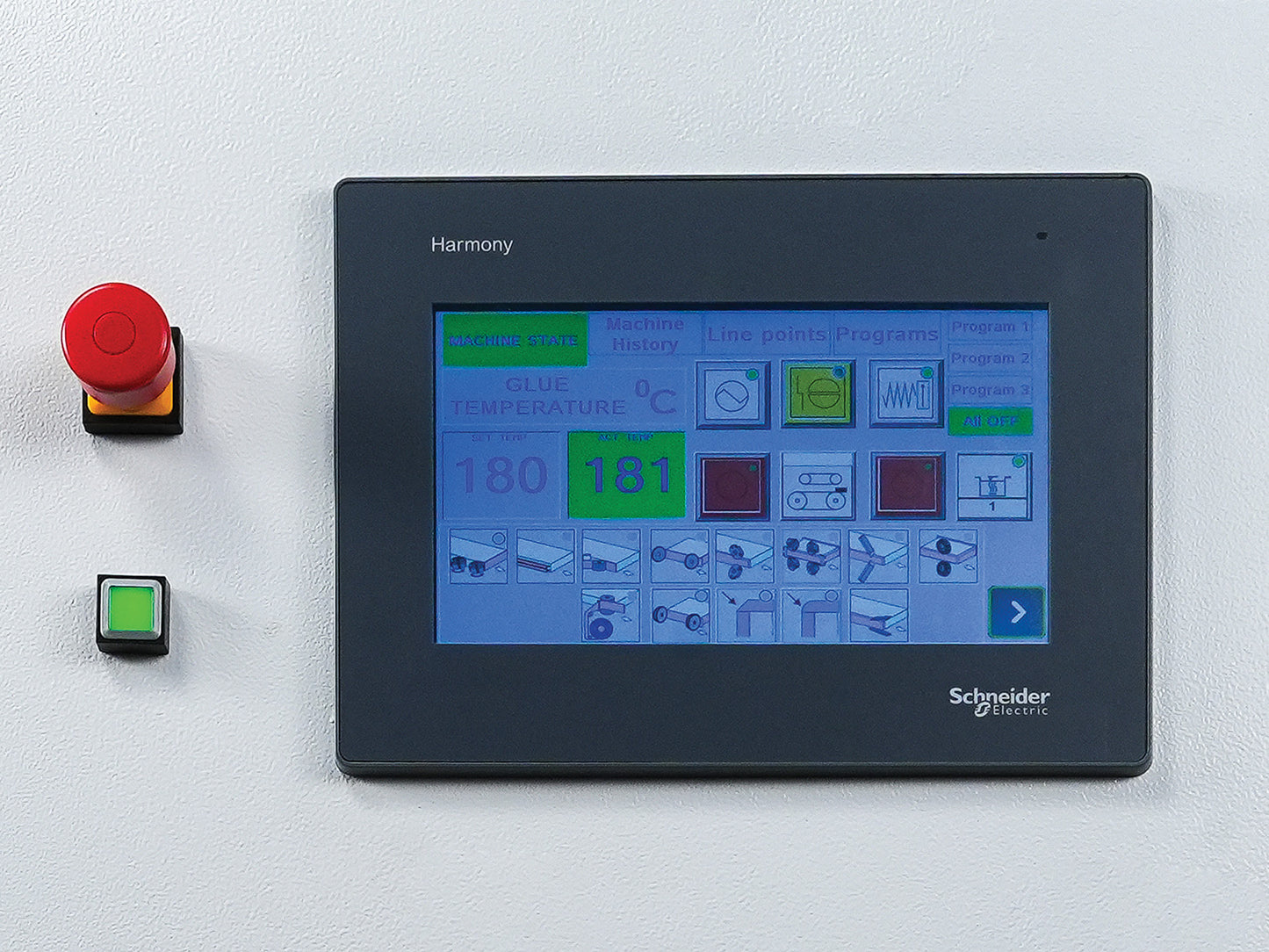

• Touch HMI controls for ease of operation

Model 220C Key Features

Starting from this, we offer the machine with contour trimming unit which completes the corner rounding operation up to 40 mm work piece thickness. Precise manual adjustment of the units ensures perfect finishing on top and bottom as well as corners on the edge material.

Model 220FC Key Features

The machine comes with the joint trimming unit, which removes the imperfection on the panels from the cutting process. The units are set by the operator using numerical indicators on each unit with the quick change from the thin edge to thick edge material.

Model 220FCP Key Features

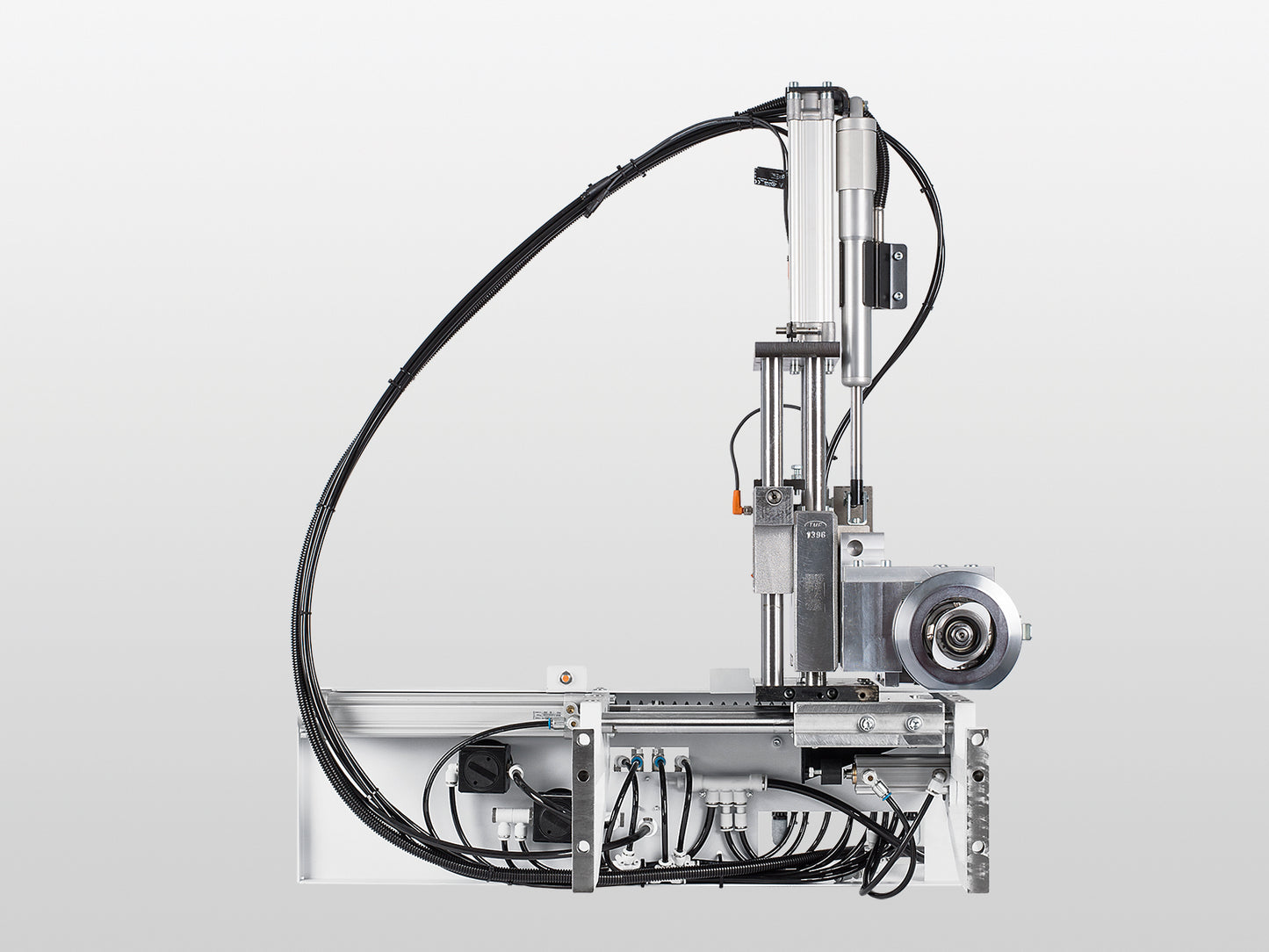

The end trimming unit, profile trimming unit and profile scraper are managed automatically from 7’ touch HMI screen. The automatic change over in the working units makes the machine more flexible and efficient during frequent changeover as per production needs.
