RCS 11
RCS 11
Share
Collapsible content
Production Description
The material flow is automated and ordered, making the edge banding machine more efficient. The result is a leaner and more efficient edging process with an ordered flow of parts for any production solution. Thanks to automation, one machine operator is sufficient for the complete processing of the workpieces. The automated parts flow is the decisive advantage over competitors who still feed workpieces in manually.
Highlights
- Increased efficiency - Reduction of labor costs.
- Flexible personnel organization — One-man operation
- Plug & Play operation — No training required
- Better quality control and process stability
- Ergonomic operation — Reduced operator fatigue
- Capacity availability at all times
Benefits
Simple and Intuitive Controls
Sanding Heads
Technical Details
| Conveyor Speed | m/min | 11 |
| Work piece Length | mm | 300 - 2450 |
| Work piece Width | mm | 120 - 1450 |
| 4 side processing* | - | - |
| Minimum work piece size | mm | 300 X 300 |
| Maximum work piece size | mm | 1450 X 1450 |
| Maximum work piece weight | Kg | 50 |
| Mass / Unit Area | Kg /m2 | 25 |
| Working Height | mm | 835 - 950 |
| Controls | - | Independent of edge machine controls |
| Connected Load | Kw | 2.5 |
| Electrical |
- | 3ph, AC 400V, 50 Hz |
| Control Voltage | V | 24 VDC |
* Manual help required for parts with width more than 1500mm
*Increased loading gap required between work pieces of shorter length & longer width. Evaluate by trials for best results.
Features
Machine Dimension
Download Brochure
Book a live presentation
Book your appointment and experience your solution live in action. As an on-site event in our showroom or as an online event from the comfort of your home. We will advise you to your personalized requirements. The choice is yours!
RCS 11

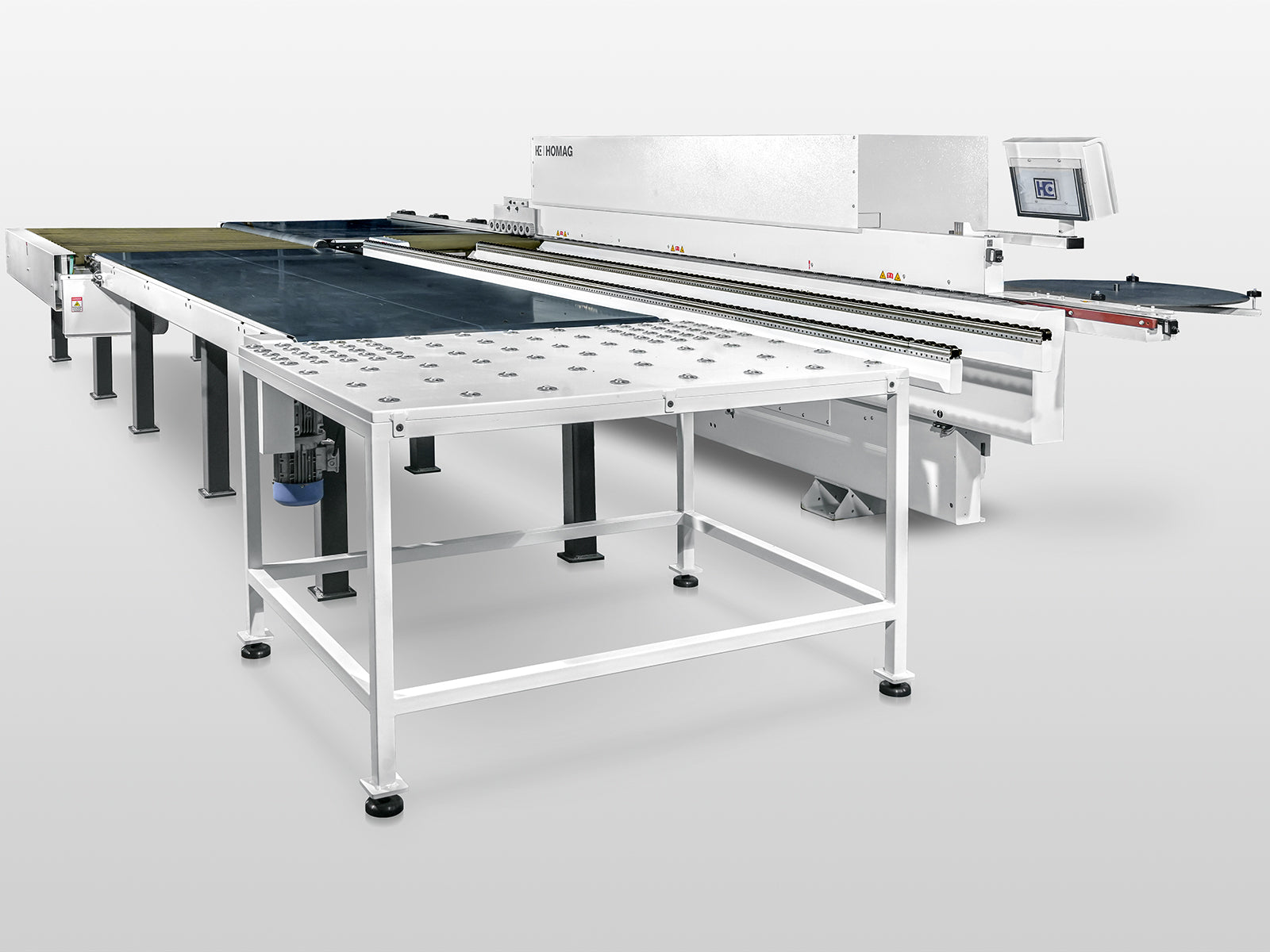

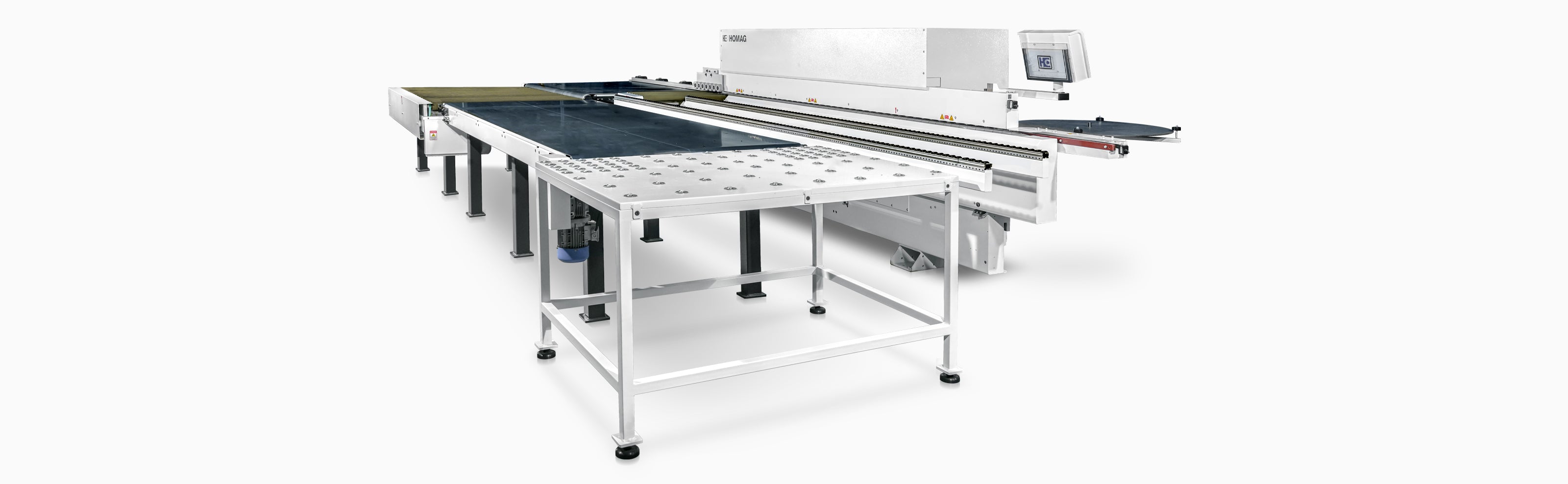

The return conveyor system RCS-11 is designed to automate the edge banding machine EDGETEQ S-230 and is an essential helper for more efficient edge banding of workpieces. The RCS-11 ensures that each finished workpiece returned to the operator without causing damage or defects. It provides an automated workpiece flow and reduces the amount of labor required by an operator like manual lifting and handling of finished workpieces, saving time and increasing productivity and quality. The conveyor speed of 11 m/min ensures a swift return of finished workpieces to the operator.
