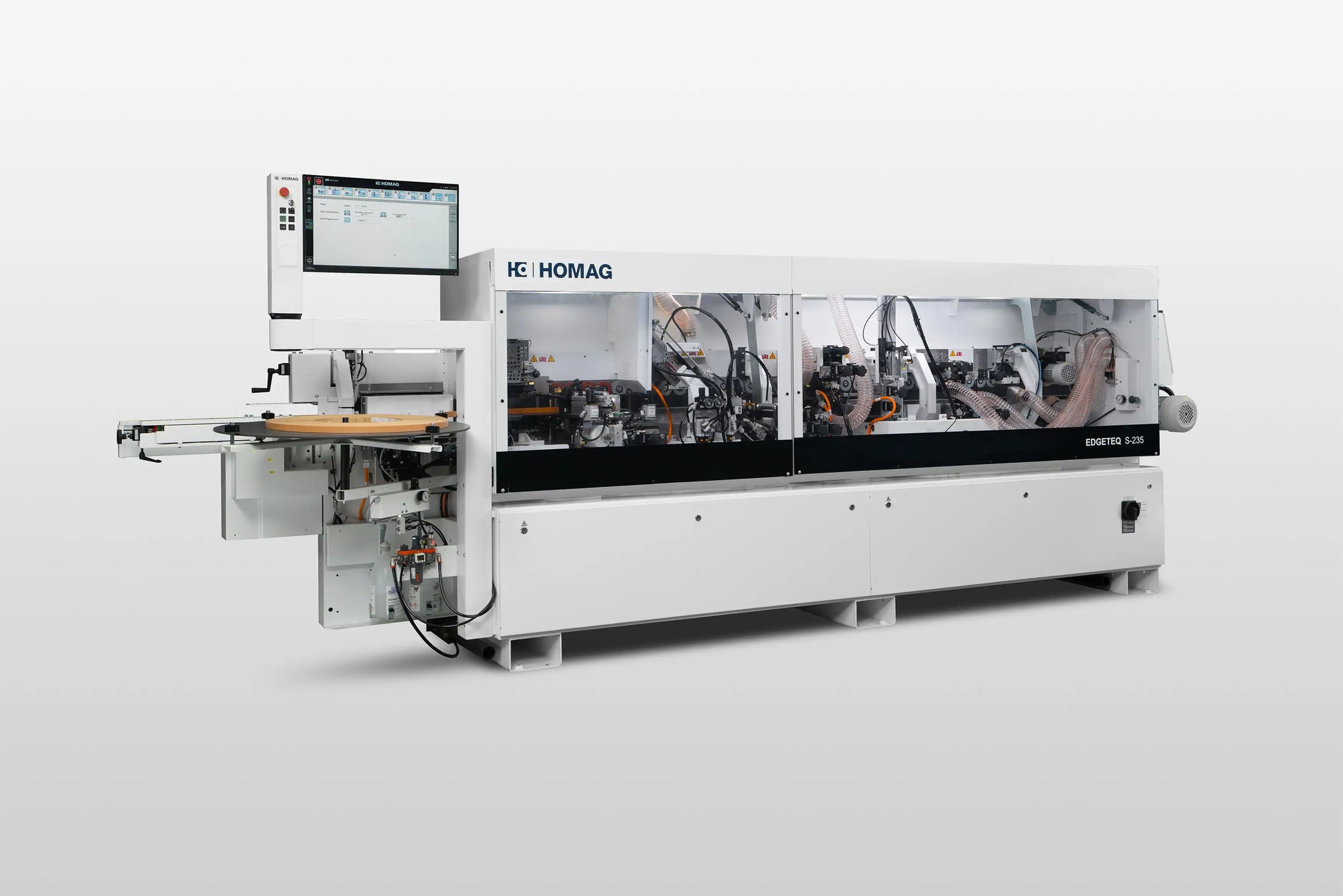

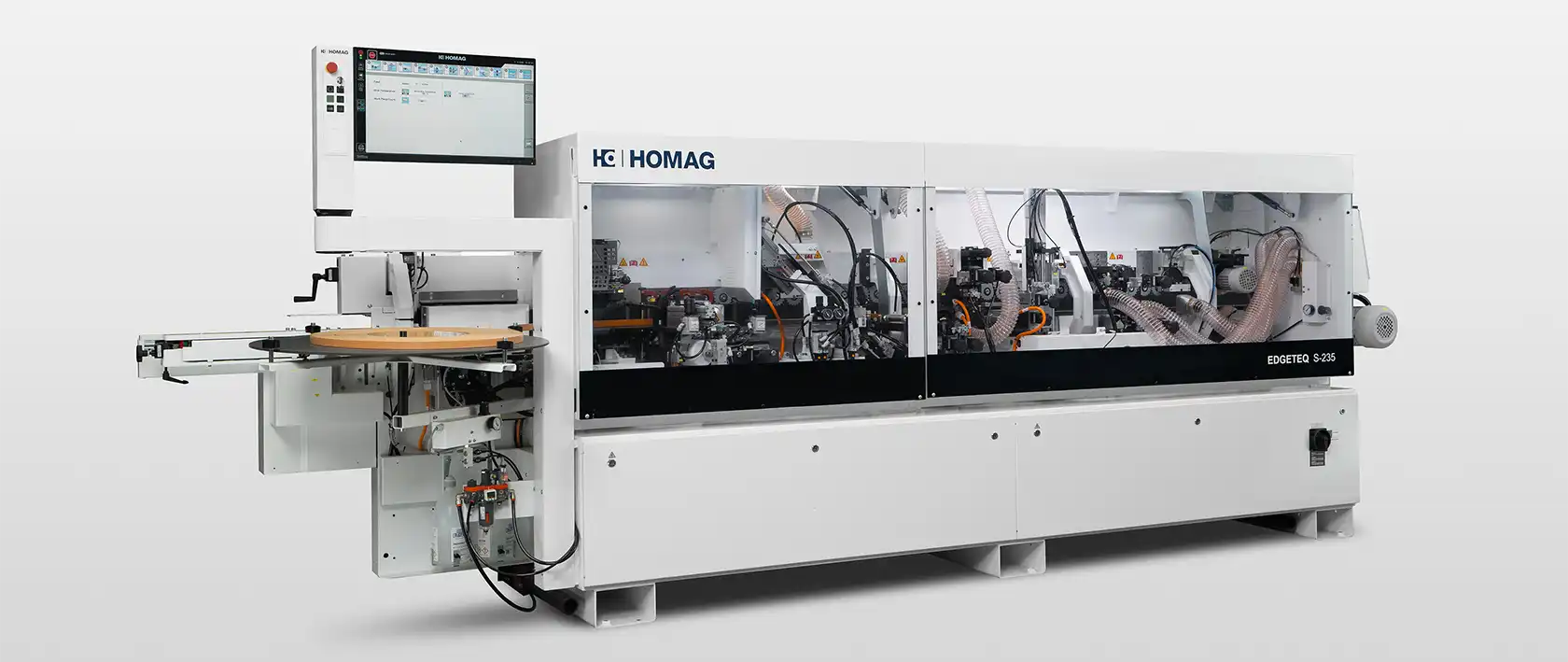

EDGETEQ S-235
EDGETEQ S-235
The EDGETEQ S‑235 delivers precise and consistent edge finishing, with a steady feed rate that supports reliable production. Top pressure rollers guide each workpiece smoothly through the edge banding process. A fast-heating glue pot applies hot-melt adhesive quickly and evenly for a high-quality bond. Trimming tools remove chips efficiently, keeping edges clean and uniform.
Share
Collapsible content
Production Description

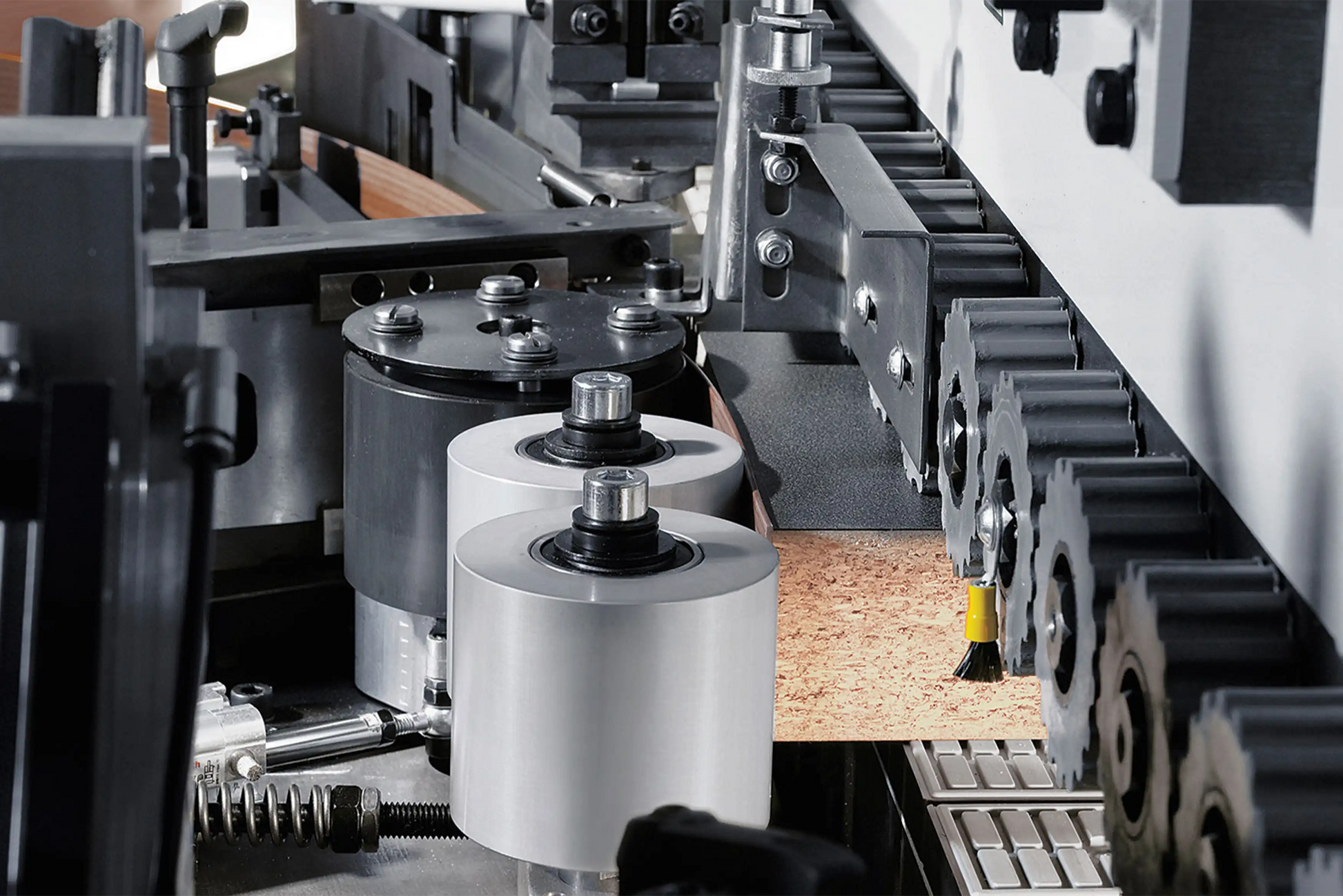

EDGETEQ S-235 solution features a top pressure rollers unit that ensures precise workpiece guidance throughout the edging process. The newly developed glue pot enables fast heat-up times and precise adhesive application for optimal edge quality. Optimized trimming tools deliver efficient chip removal and consistently high processing quality. A stable feed rate supports reliable throughput and productivity, while the modular design enables straight forward extensions to meet evolving production requirements and individual needs.
Highlights

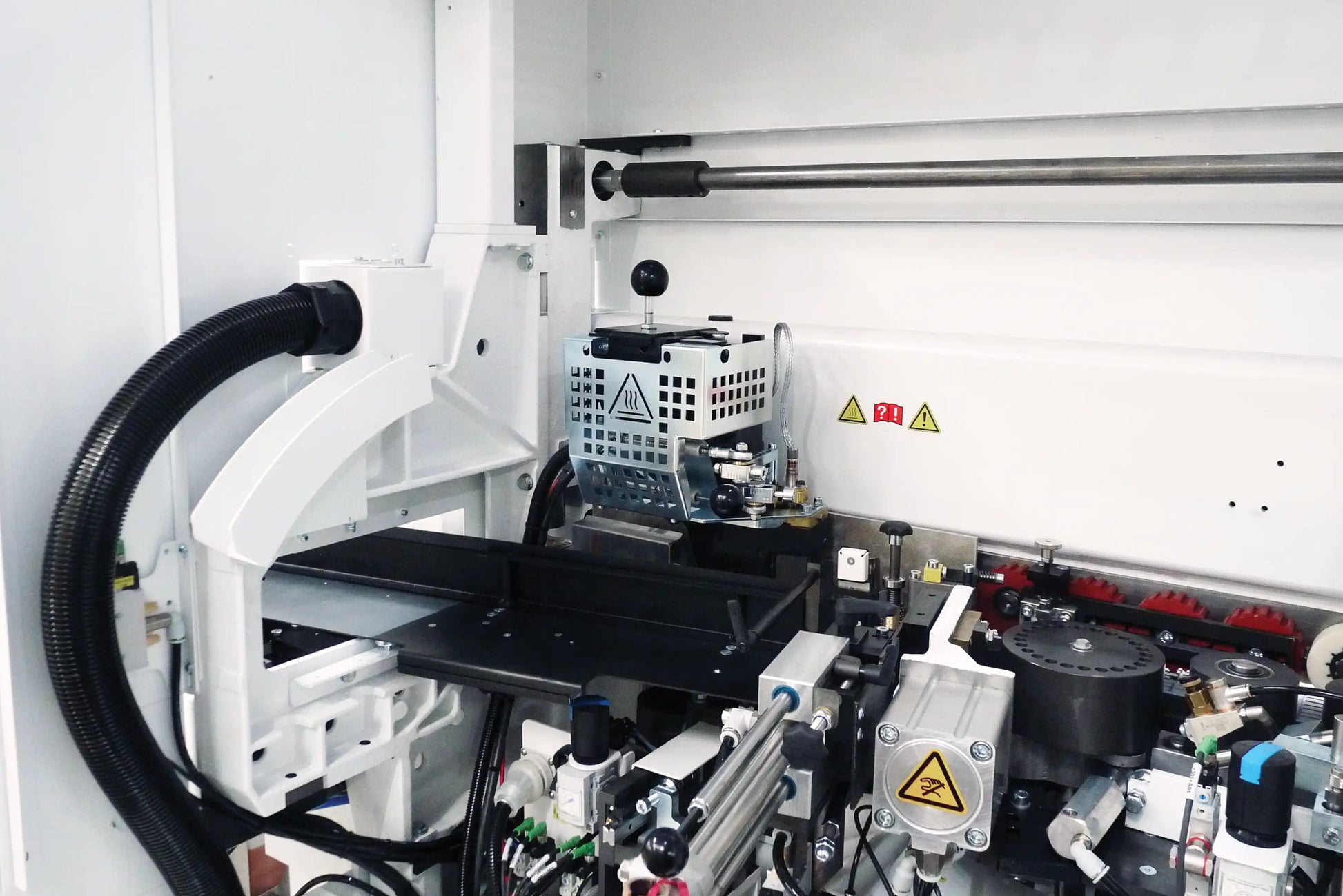

- Universal melting unit
- Top belt pressure
- Optimum price/ performance ratio
- Your Versatile High-Performance Solution
Benefits

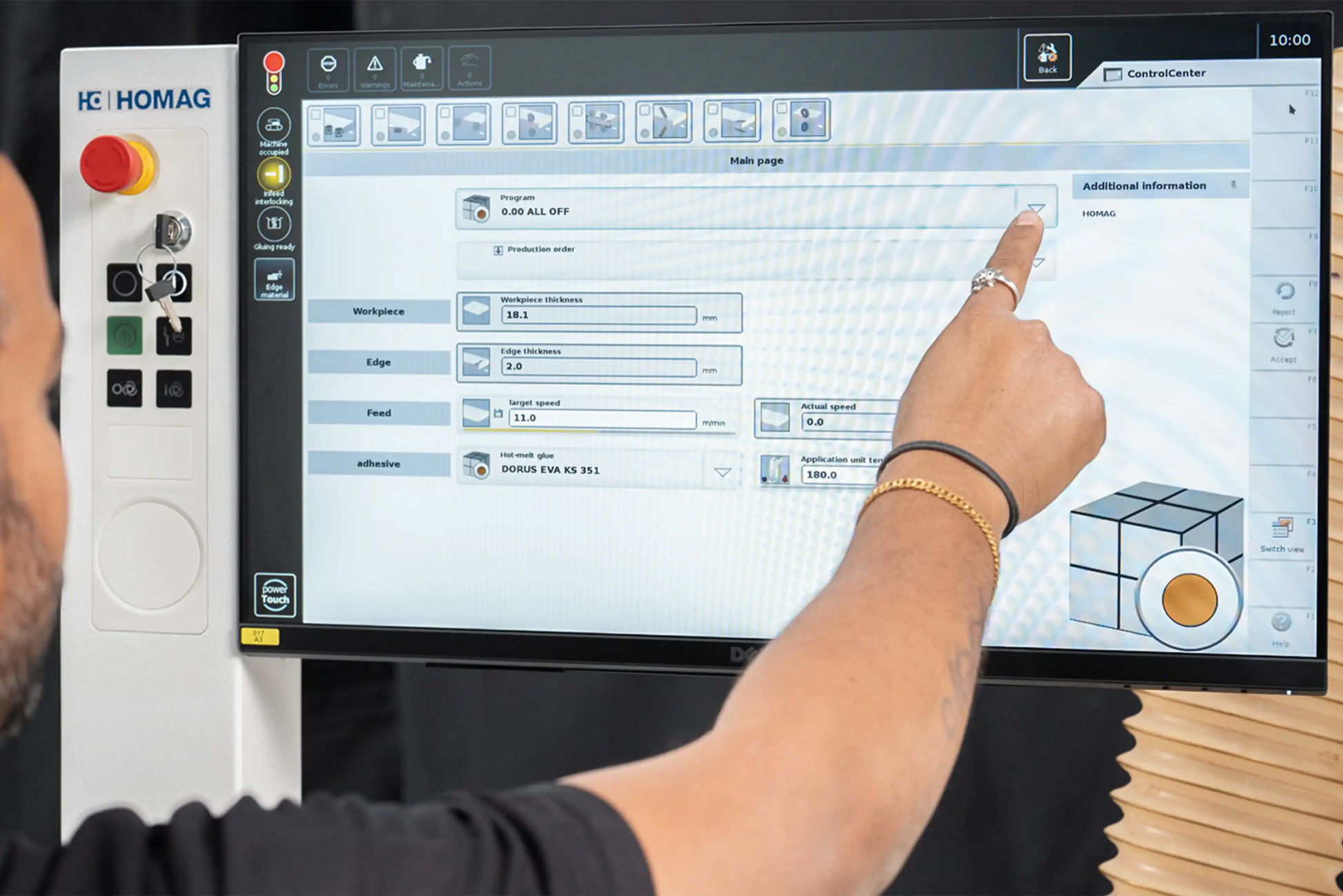

Simple and Intuitive Controls
Sanding Heads
Technical Details
|
Overall Length |
4,880mm |
|
Feed Speed |
11 m/min |
|
Work piece width* |
70 mm |
|
Work Piece Thickness |
8 - 40 mm |
|
Edge Thickness Rollers |
0.4 - 3 mm |
|
Electrics |
400 V - 3 Ph - 50 Hz |
* Dependent on the workpiece thickness
Features
- Flexible glue application system for easy changing of the color and glue type (EVA, PU)
- A pneumatic trimming unit designed for perfect corner rounding without the need for manual adjustments or setup.
- A versatile trimming unit with pneumatic adjustment for automatic edge thickness control directly from the panel.
- Configure it your way : Choose between Profile + Glue Joint Scraper + Buffing for premium finishing, or Dual Profile Scrapers + Buffing for optimized performance and flexibility.
Machine Dimension
Download Brochure
Book a live presentation
Book your appointment and experience your solution live in action. As an on-site event in our showroom or as an online event from the comfort of your home. We will advise you to your personalized requirements. The choice is yours!
EDGETEQ S-235
The EDGETEQ S‑235 delivers precise and consistent edge finishing, with a steady feed rate that supports reliable production. Top pressure rollers guide each workpiece smoothly through the edge banding process. A fast-heating glue pot applies hot-melt adhesive quickly and evenly for a high-quality bond. Trimming tools remove chips efficiently, keeping edges clean and uniform.
