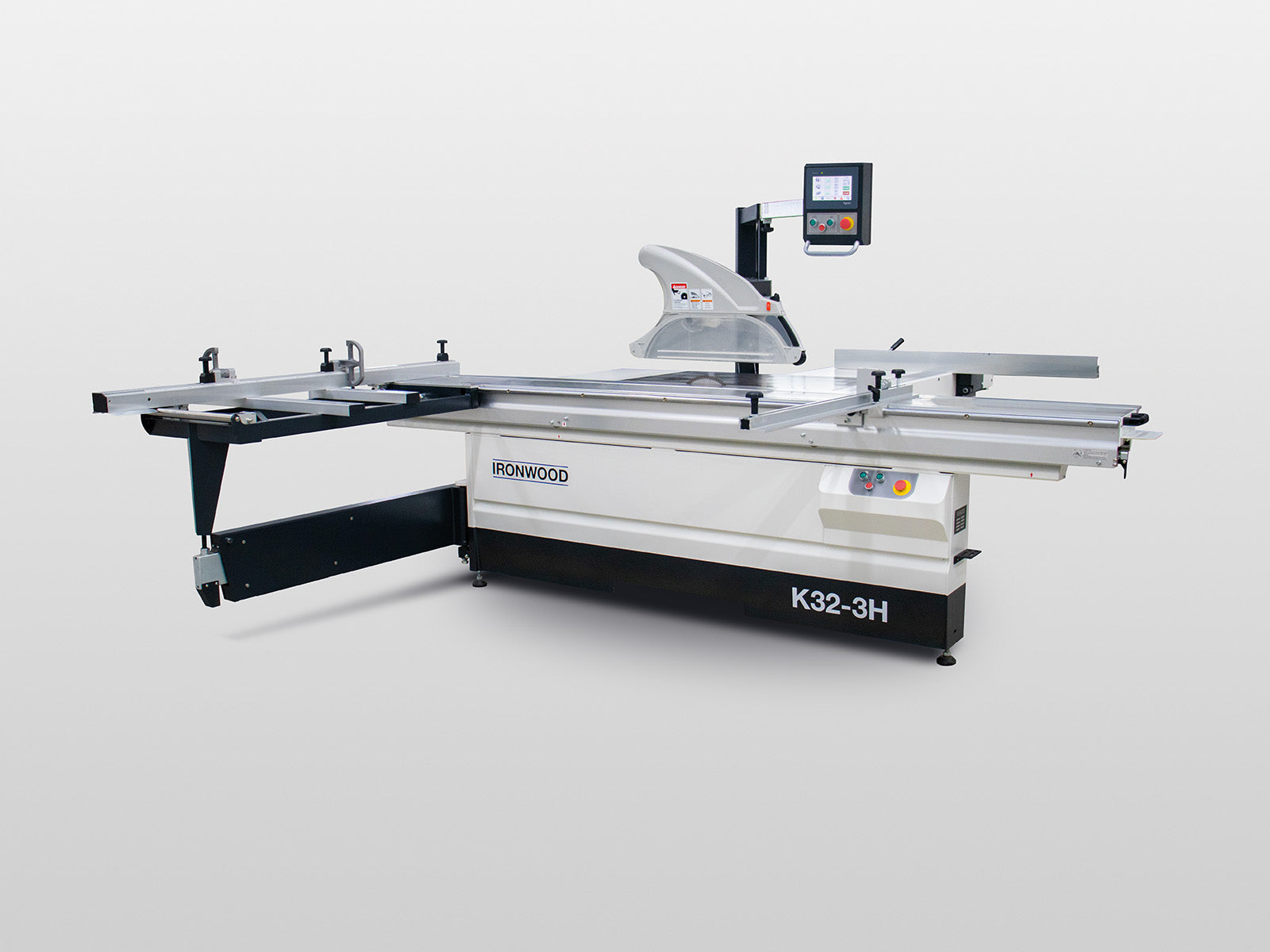

Sliding Table Saw K32-3H
Sliding Table Saw K32-3H
The Sliding Table Saw K32-3H is a must have for your workshop. Its precision, versatility, safety features, efficiency, and durability make it a must-have tool for joiners of all skill levels. Investing in the Sliding Table Saw K32 will enhance your daily work and enable you to take your projects to the next level. So, if you're looking for a solution that combines functionality, reliability, and performance, the Sliding Table Saw K32-3H should be at the top of your list.
Share
Collapsible content
Production Description
Compact in size, ergonomic in operation and equipped with a sharp saw blade, the K32 is made for the demands of the aspiring craftsman. This is an indispensable tool in any workshop that works with full panels and/or long boards. Sliding Table Saw K32 is designed to facilitate ripping panels, crosscuts and angled cuts on raw and laminated panels. Our K32 provides an easy way to cut panels while not chipping the laminate boards and keeping the panel both straight and squared out.
Highlights
- High quality, Extruded Alloyed Aluminum profile sliding table.
- Liberally ribbed & Anodized for long life of the table.
- Hardened & ground round guide rods.
- Hardened & precision ground prismatic V rollers for smooth stick slip free table movement.
- Graded cast iron saw carriage. Liberally ribbed for high rigidity & sturdiness.
- Hardened &ground round guideways for saw spindle vertical adjustment.
- Extra wide segmented guide for tilting feature -45°.
Benefits
Simple and Intuitive Controls
Sanding Heads
Technical Details
| Max. main saw blade | ø 350 mm (14'') |
| Max. cutting height with ø 350 saw | 100mm @ 90° |
| Max. cutting height with ø 350 saw | 70 mm @ 45° |
| Rectified cast iron fixed table dimension | 570 x 1000 mm |
| Main saw speed | 3000/4000/5000 RPM |
| Main saw blade ‐ supplied with machine | ø 305 mm |
| Main saw bore | ø 30 mm |
| Sliding table dimensions | 380 x 3200 mm |
| Main saw blade power | 7.5 HP (5.5 kW) |
| Scoring saw motor power | 1 HP (0.75 kW) |
| Scoring saw blade | ø 120 mm |
| Scoring saw blade bore | 22 mm |
| Scoring blade speed | 8000 RPM |
| Saw table extension ‐ CE | 370 mm |
| Cross Cut fence movement | Manual |
| Miter fence | Yes |
| Cutting width adjustment | Manual |
| Overhead saw guard type | Simple type |
| Tool frame CE‐ | Yes |
| Main channel dust collection system |
Simple type ø 4" |
| Guard dust collection system | Simple type ø 100 |
| Electricals | 420V / 50 HZ/ 3PH / 24VDC Control |
Features
Machine Dimension
|
Sliding table length |
3200 mm |
Crosscut fence - closed | 1820 mm |
|
Non ‐CE |
850 mm |
Crosscut fence - extended | 3230 mm |
|
Cutting width on fixed table |
1300 mm |
Sliding table stroke | 3525 mm |
|
Cutting width +225 |
1525 mm |
Sliding table stroke | 3470 mml |
Download Brochure
Book a live presentation
Book your appointment and experience your solution live in action. As an on-site event in our showroom or as an online event from the comfort of your home. We will advise you to your personalized requirements. The choice is yours!

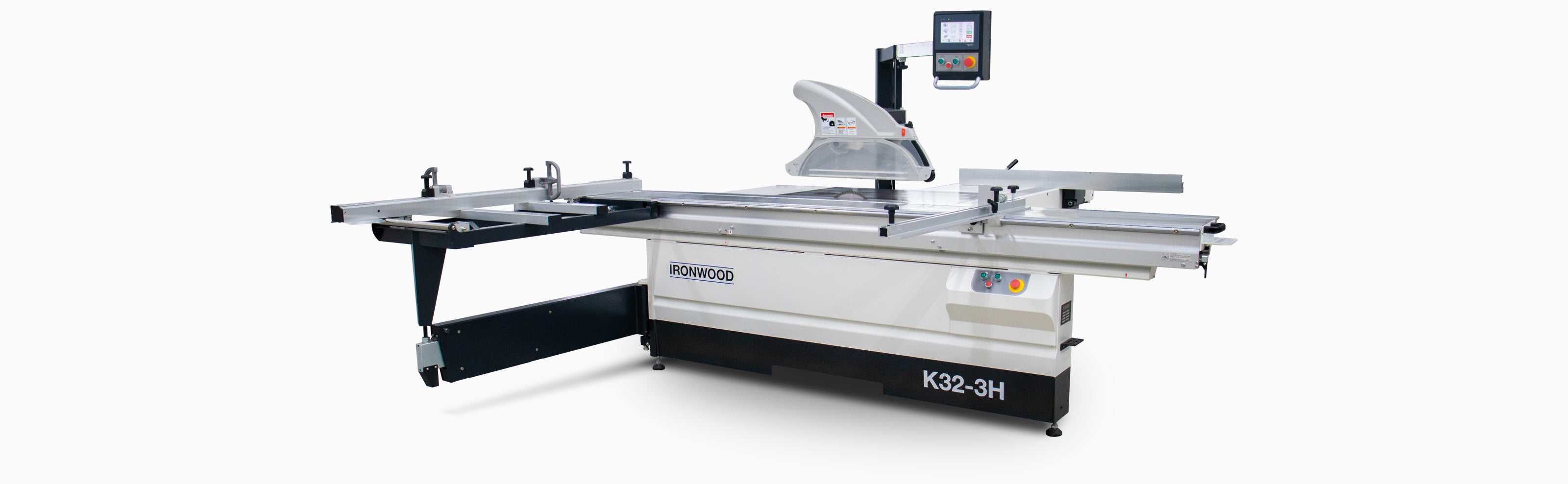

Sliding Table Saw K32-3H
