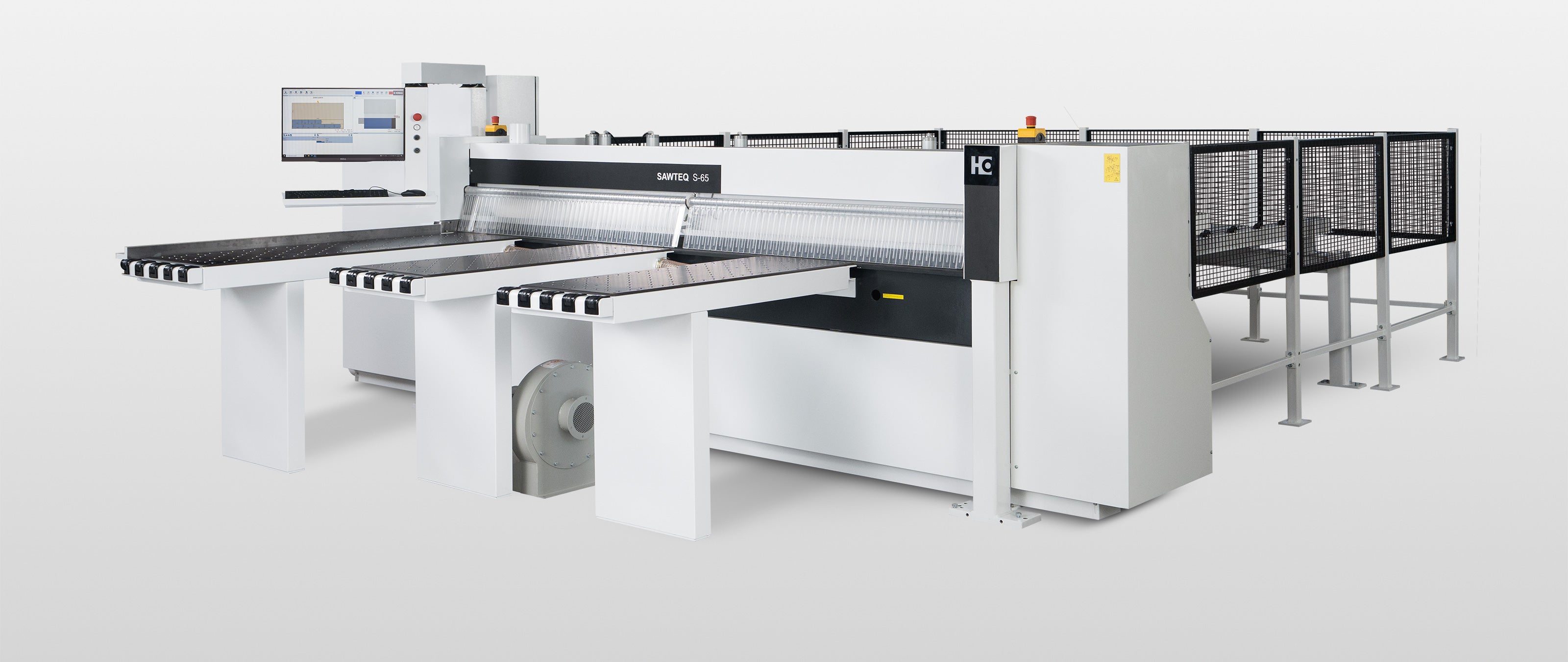

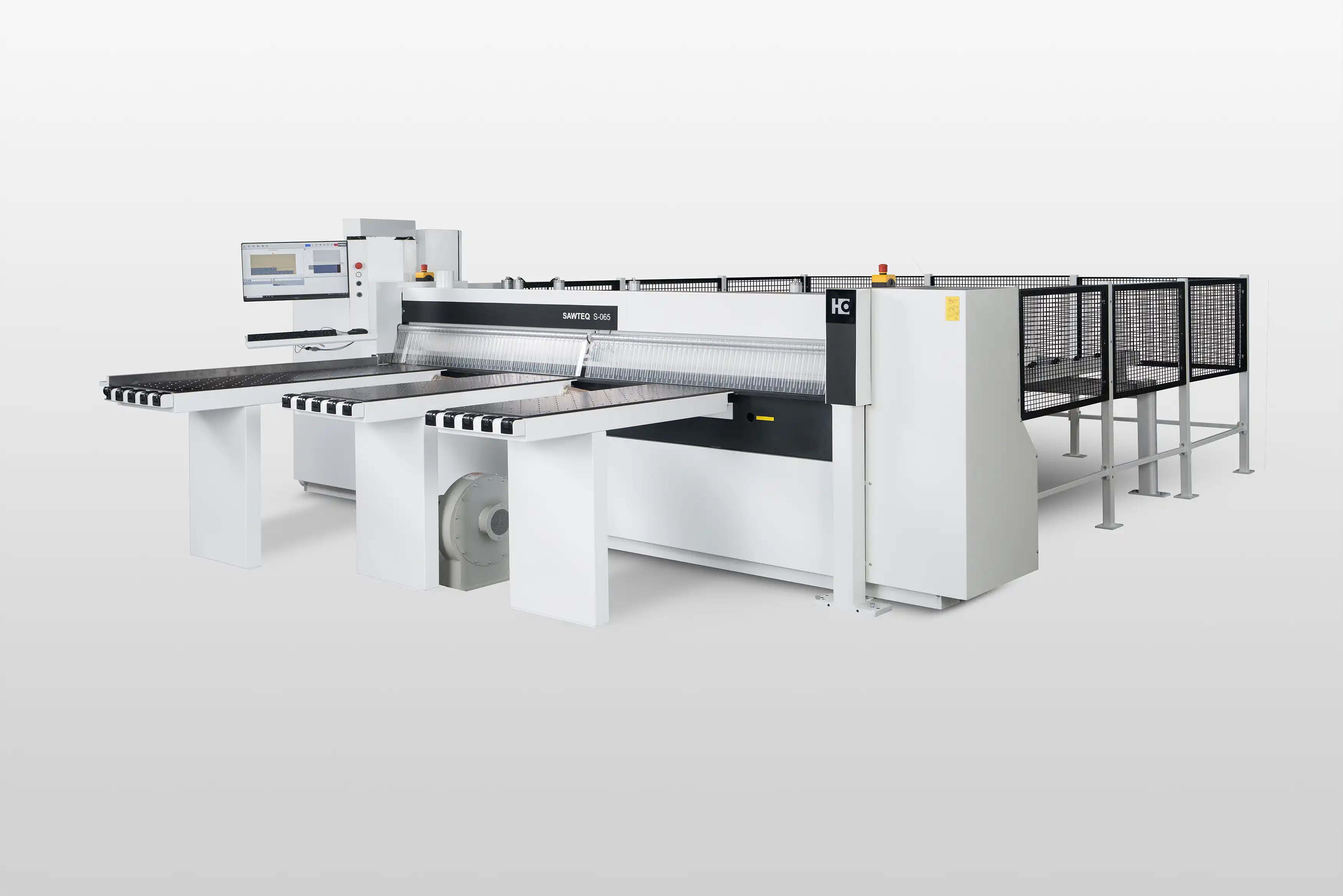

SAWTEQ S-65

SAWTEQ S-65

The SAWTEQ S‑65 delivers precision from the first cut. Panels move steadily through the saw, producing uniform results on every job. The intuitive software keeps operation simple and efficient. Reliable cutting performance works together with comfortable, ergonomic handling. The design supports efficient energy use, and every essential function is integrated, creating a balanced solution for panel processing.

Get A Quote View full details

Highlights

  • Side pressure device - precise cutting, improved process quality

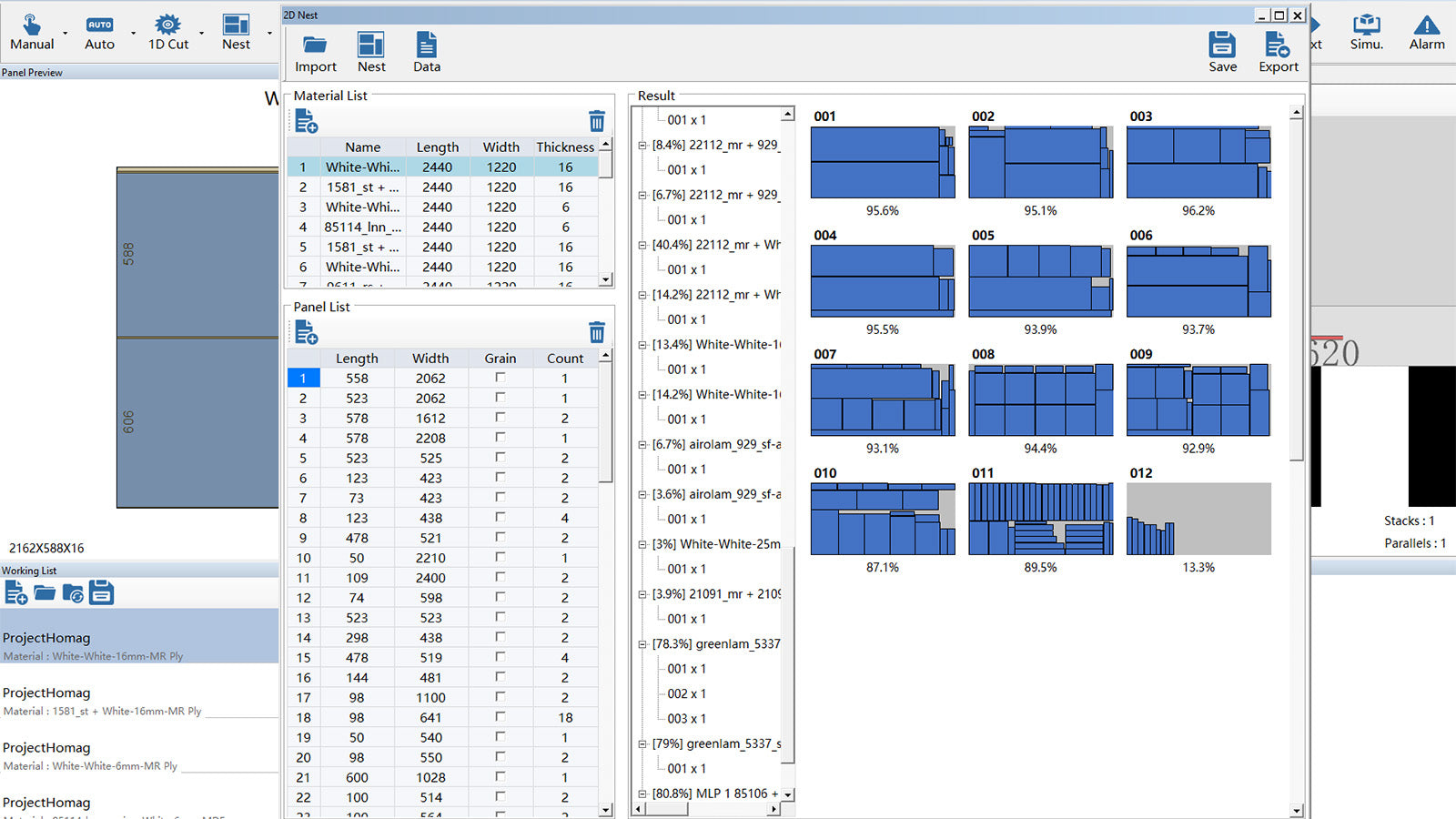

  • CADSaw– intuitive operation, next step visualization
  • Air tables fully air cushioned – easy moving of board, single sheet and books.

Technical Details

Saw blade projection

60 mm

Cutting length

2,900 mm

Clamps

5 (optional up to 2 more)

Saw carriage speed

up to 30 m/min

Program fence speed

30** m/min

Operating software

CADSaw

Operating system

Windows

Monitor

24" TFT flatscreen display

Main saw motor

5.5 kW (7.5kW as an optional)
Required compressed air supply

6bar

Main saw blade

300 x 4.4 x 60

Scoring saw blade

150 x 4.4 - 5.25 x 45

Average total air requirement (Nl/min)

100 Nl

Dust extraction system

2,900 m³/h


Machine Dimension


Width

Depth

Height

4,630 mm

6,124 mm

1,800 mm





HOMAG India - edge banders, edgebanding, Panel dividing saw, cutting machines, CNC processing, Router, Drilling, Automation Technology, Services, Spare parts, Software and Apps

Book a live presentation

Book your appointment and experience your solution live in action. As an on-site event in our showroom or as an online event from the comfort of your home. We will advise you to your personalized requirements. The choice is yours!

Get your Appointment!

SAWTEQ S-65

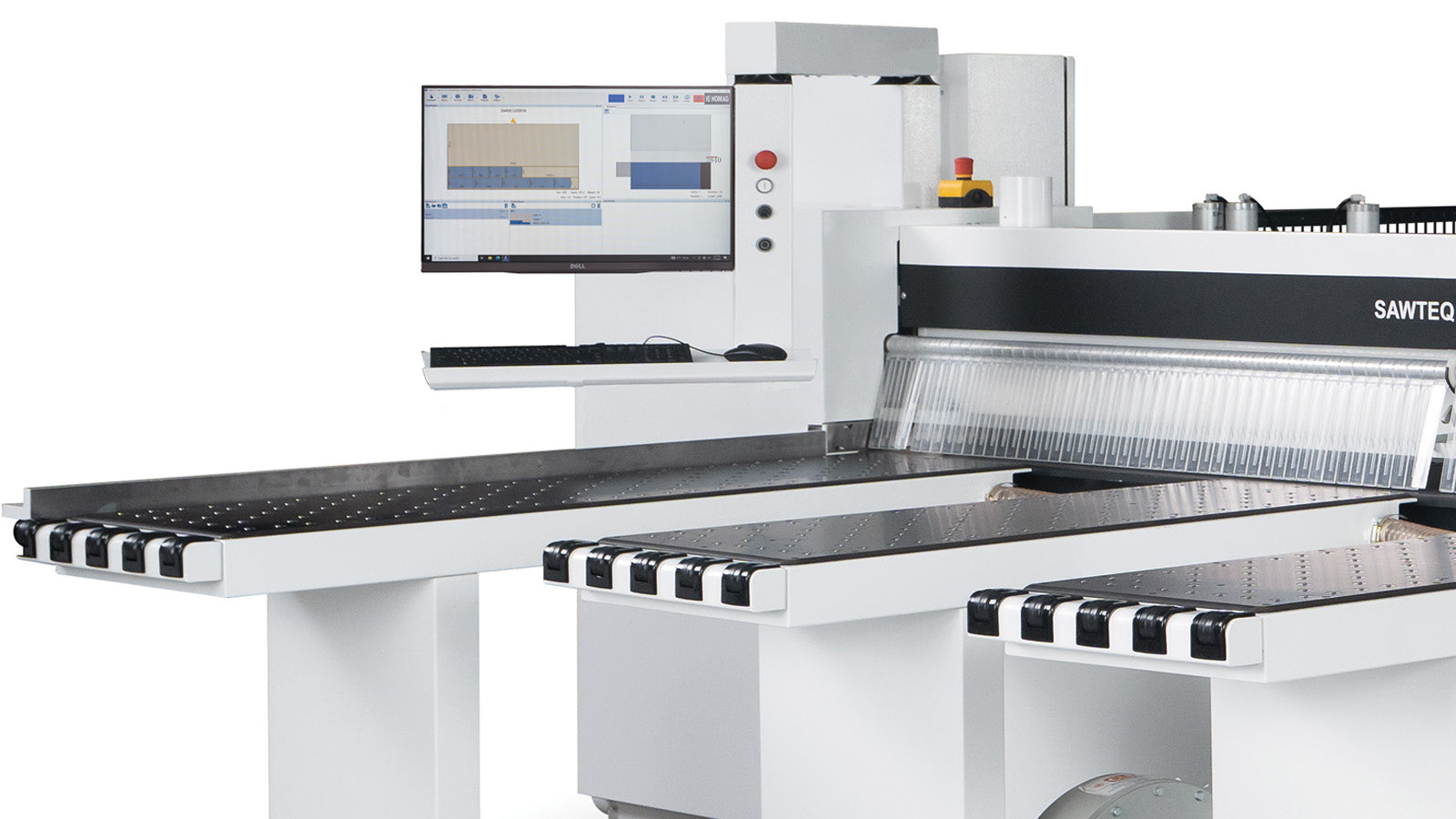

Compact design with air-cushioned tables for easy panel movement. Side pressure device ensures precise cutting and consistent process quality. CADSaw interface provides intuitive operation with clear next-step visualization.

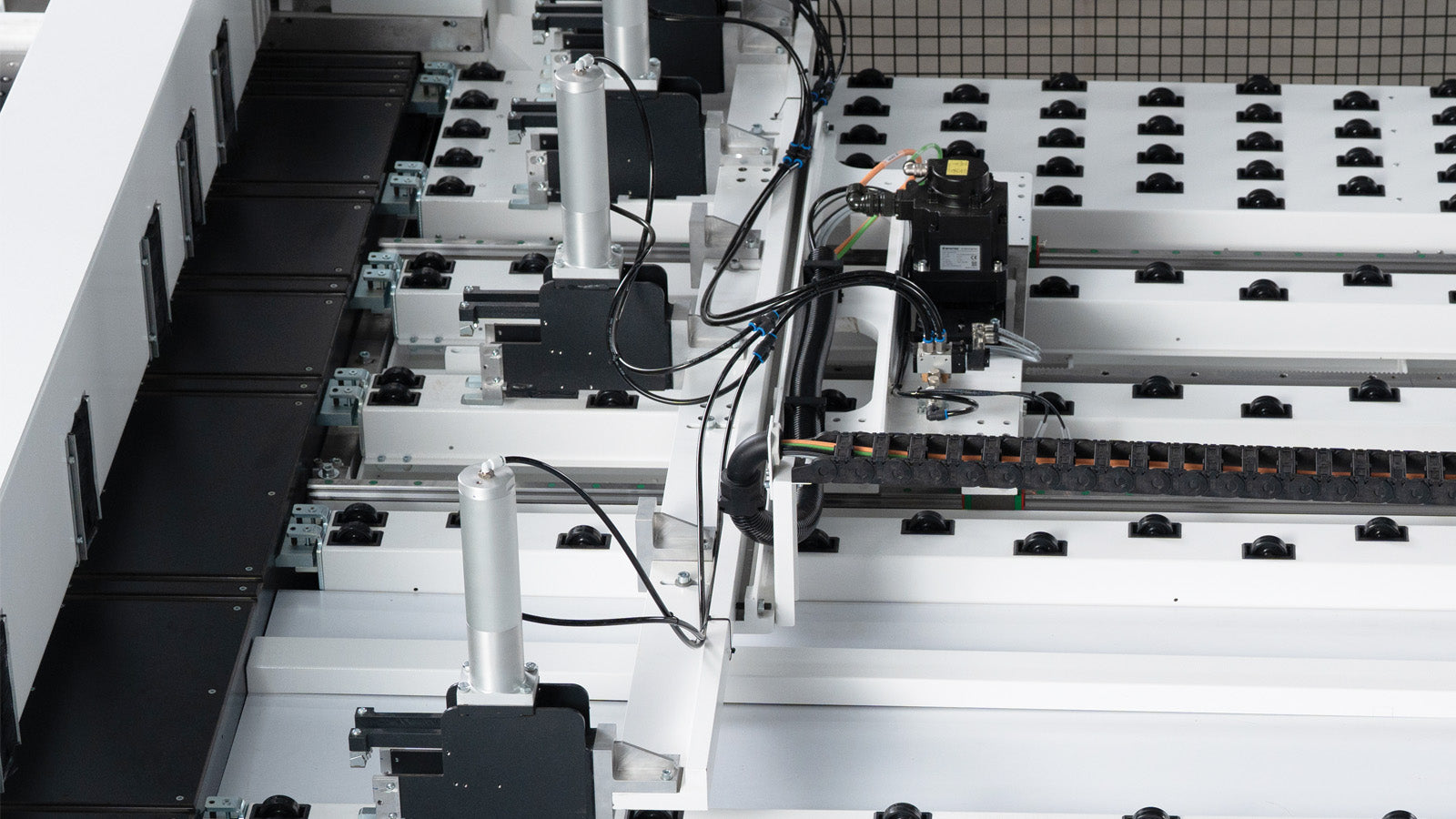

Robust clamps position panels accurately at the cutting line. Upper clamping elements lower horizontally and a secure grip whether cutting a single panel or multiple panels together. Built for continuous multi-shift operation.
